Dwelling Size -up to 120m2
Thermal Efficiency – up to 93%
Automatic, 100% Summer Bypass
Optional Electric Pre and Post Heaters
Passive House Approved (when quipped with a Pre Heater)
Description

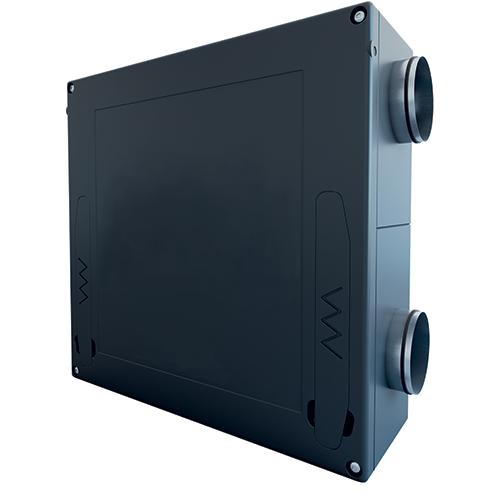

The DV250 Entro is a highly efficient, side entry MVHR unit that can recover up to 93% of, otherwise wasted, heat.
The unit is made with high density EPP material which provides significant insulation and eliminates thermal bridging. The DV250 uses low energy EC fans to minimise the unit’s energy consumption and can help you reduce your energy bills.
The unit has an easy to maintain plastic counterflow heat exchanger which prevents the airstreams from mixing and easy to clean air filters that provide you with a clean, healthy indoor environment.
| Brand | AIRFLOW (CAT 60) |
| Dwelling Size | 120 |
| Dimensions | 850 x 280 x 660 |
| Mounting | Floor / Ceiling / Wall |
| Connections | Top |
| Connections MM | 4 x 160 |
| Condensate Discharge | 14mm |
| Air Flow@ 100PA | (m3/hr) / (l/sec) 230 / 64 |
| Sound Level @3M (DBA) | 40 |
| Thermal Efficiency | Up to 93% |
| Max Power Consumption | 120w |
| Frost Protection | Yes |
| Summer Bypass | Automatic |
| Filter Class | 2 x G4 (2 x F7 Optional) |
| Controls | Variable speed controller Touch screen panel (optional) |
| IP Rating | IP20 |
| Running Mode | Continuous |
| Parts Guarantee | 2 Years |
| Motor Guarantee | 1 Year |
| SAP-Appendix Q | Yes |
| Passive House | No |
| (ERP) Directive 2016 Rating | N/A |
