Airflow DV130 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
Airflow DV130 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
Airflow DV130 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
Roll over image to zoom in Click on image to zoom
Airflow DV130 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
Airflow DV130 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit
Airflow DV130 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit

Airflow DV130 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit

SKU: ‎90001656

Price:
£3,957.00 inc VAT

Description

Airflow DV130 ENTRO-V Mechanical Ventilation Heat Recovery Unit with Kit t Suitable for Dwelling Floor Area up to 277 m2

    • DV130 Entro V Kit Suitable for Dwelling Floor Area up to 277 m2
    • SAP PCDB tested and listed
    • "460 m3 /h (127.7 l/s) maximum air flow rate @100Pa"
    • Domestic and residential heat recovery ventilation system
    • Thermal efficiency capabilities of up to 85%
    • "2x ISO ePM Coarse 55% (G4) filters as standard with an extra supply air filter location for an optional ISO ePM1 60% (F7) - ISO 16890 compliant"
    • Suitable for left- and right-hand configurations
    • Can be installed in vertical mounting positions, on the wall or on the floor. Hanging brackets, screws, and feet are supplied with the unit
    • The unit has interchangeability of spigots position from top to the sides

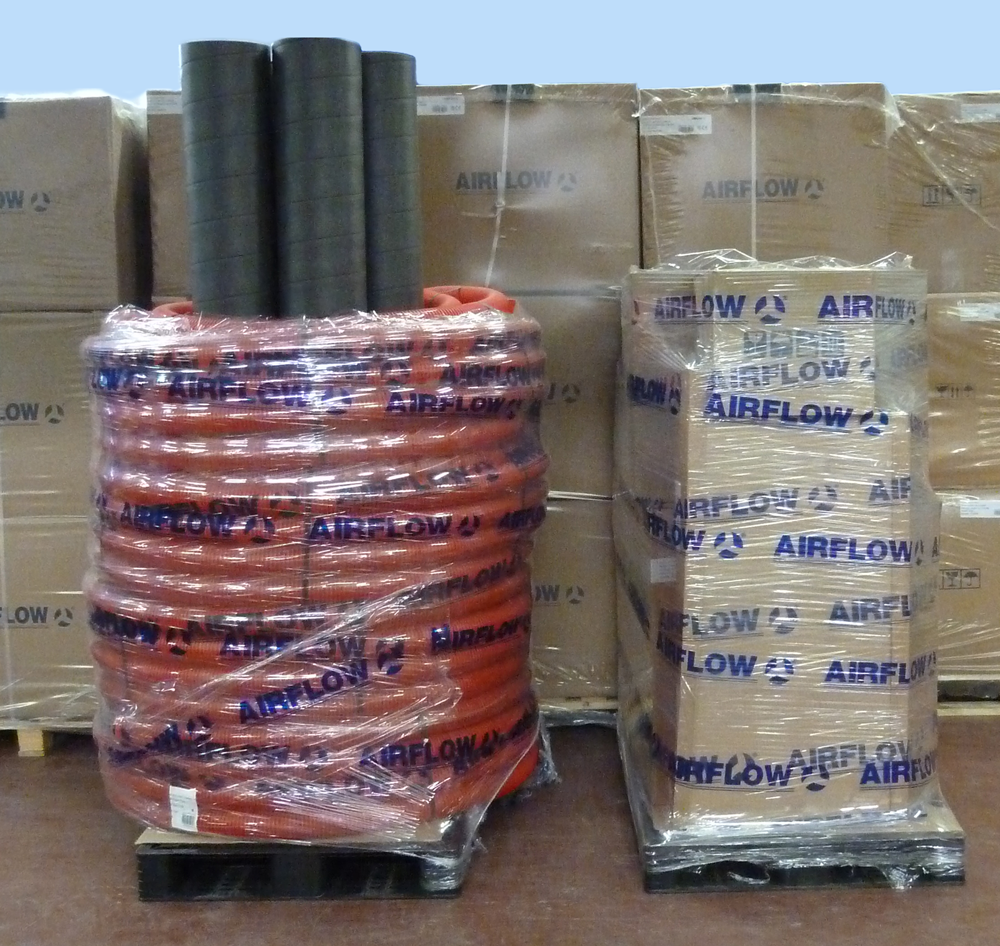

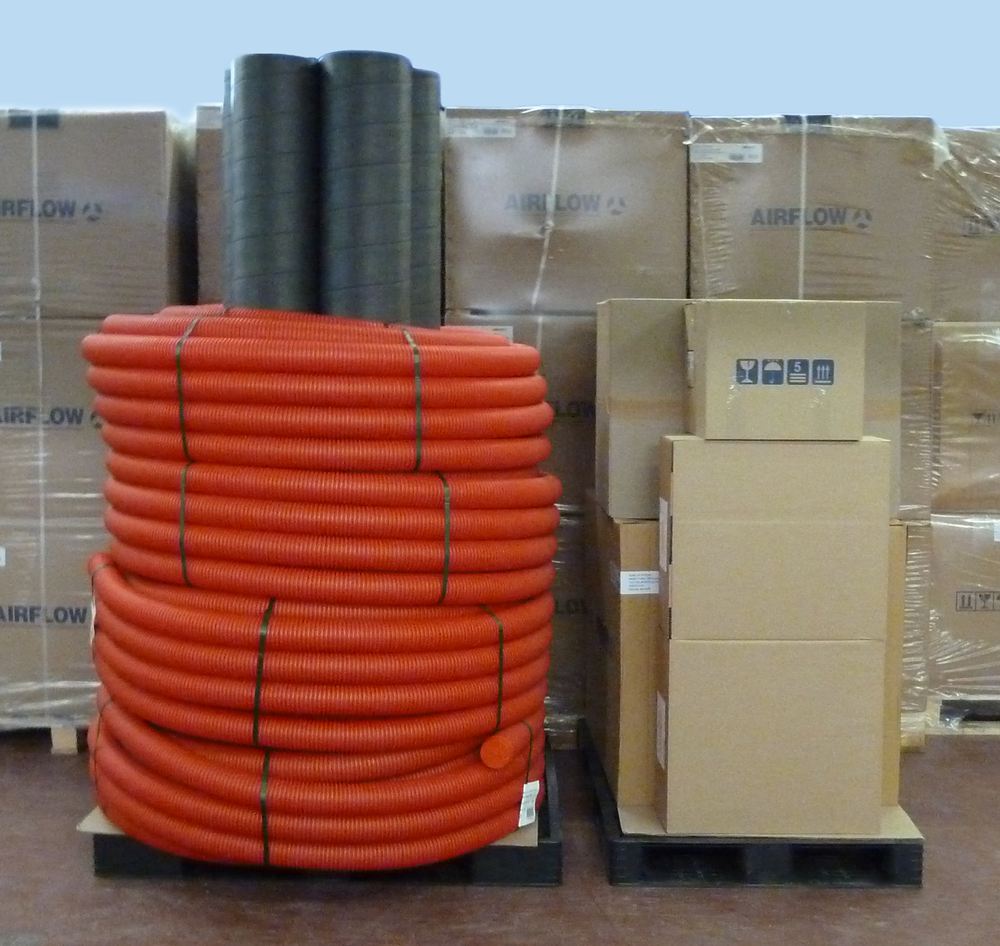

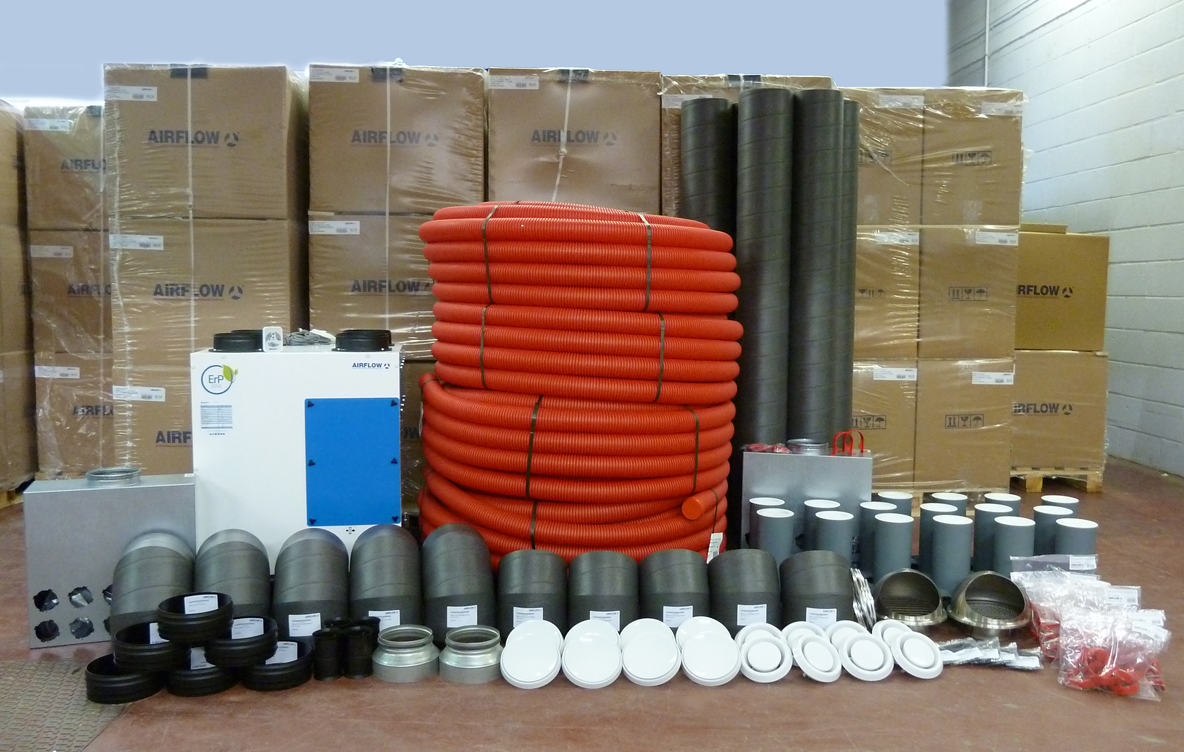

    What's in the box?

  • 90001245 - DUPLEXVENT DV130 ENTRO-V x 1
  • 90001308 - ENTRO-V BASIC CONTROLLER x 1
  • 90000266 - 10-PORT DIST BOX (ROUND SPIGOTS) x 2
  • 9041130 - 75 MM X 50M ROUND AIRFLEXPRO COIL* x 4
  • 9041132 - 75 MM CONNECTOR x 4
  • 9041133 - 75 MM PIPE SEALING RING (PACK OF 10) x 5
  • 51849404 - 150 MM / 6 IN ADJUSTABLE 60 - 325MM CLAMP x 4
  • 90000250 - 78 MM 90º CEILING/WALL PLENUM x 16
  • 90000339 - 125 MM PLASTIC ADJUSTABLE SUPPLY VALVE x 8
  • 90000340 - 125 MM PLASTIC ADJUSTABLE EXTRACT VALVE x 8
  • 90000352 - AIRFLEXPRO ROUND CLIPS PK10 (RED)* x 8
  • 90000497 - 160 MM TO 200 MM METAL PIPE CONNECTOR x 2
  • 90001658 - 200 MM STAINLESS STEEL WALL COWL WITH MESH x 2
  • 90001373 - 200 MM X 2 M ISO PIPE WITH CONNECTOR x 5
  • 90001277 - 200 MM ISO PIPE 45º ELBOW x 5
  • 90001278 - 200 MM ISO PIPE 90º ELBOW x 5
  • 90001362 - 200 MM ISO PIPE INTERNAL CONNECTOR x 6
  • *The red round AirflexPro rolls can be supplemented by blue round AirflexPro rolls. *Red clips can also be supplemented by blue clips

    • BrandEpicAir
    Download Guide
