• High head
• Easy fit & maintenance
• Easy access clean tray
• Built in spirit level
Up to 14kW / 47,000Btu/h
Ducted units
Floor standing & Chassis units
Cassette units
Refrigerated units / cold store
Description

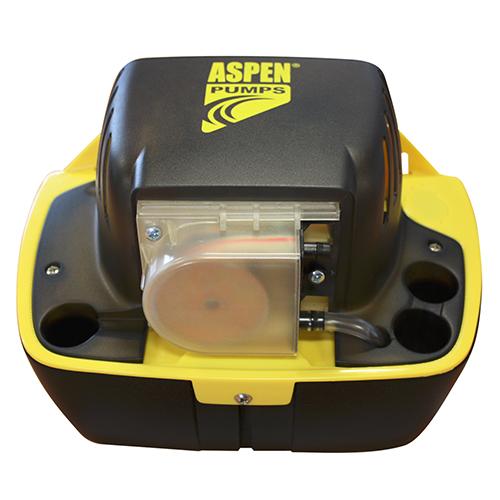

HI-LIFT 2 LITRE CONDENSATE REMOVAL PUMP
The world’s only persitaltic tank pump offers unsurpassed high head and unmatched reliability.
IN THE BOX:
• Hi-lift 2L pump
• 2m Plug & play power cable
• Fixing kit
• Install manual
| Brand | ASPEN (CAT 80) |
| Dimensions | 244 x 148 x 164 |
| Max Flow | 11L/h @ 0 head |
| Max Rec. Head | 12m |
| Max Suction Lift | n/a |
| Tank Capacity | 1L & 2L |
| Sound Level @ 1m | 51dB(A) |
| Rated | Continuous |
| Class | I appliance |
| Max Unit Output | 14kW / 47,000Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | n/a |
| Inlet/Outlet | x3 25mm in/6mm out |
| IP Rating | IP20 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | n/a |
| Self Priming | n/a |
| Power | 230 VAC, 0.4A, 50/60Hz |
| Guarantee | 1 Year |
