• Submersible secondary reservoir included
• Plug & play
• Anti siphon device
Up to 16kW / 54,000Btu/h
High wall split systems
Ducted units
Floor standing & Chassis units
Perfect for... Smaller commercial & domestic units
Description

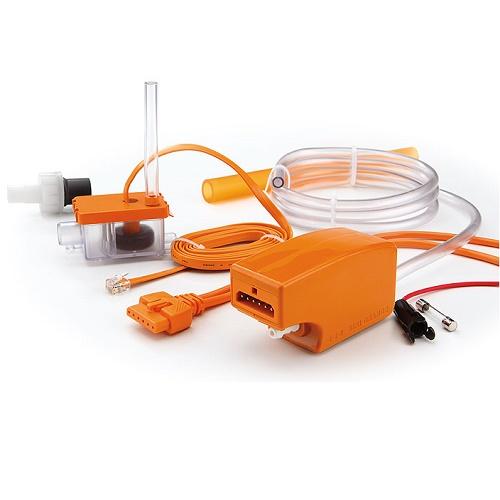

MINI ORANGE CONDENSATE REMOVAL PUMP
The world’s best selling mini pump offers unrivalled reliability and performance.

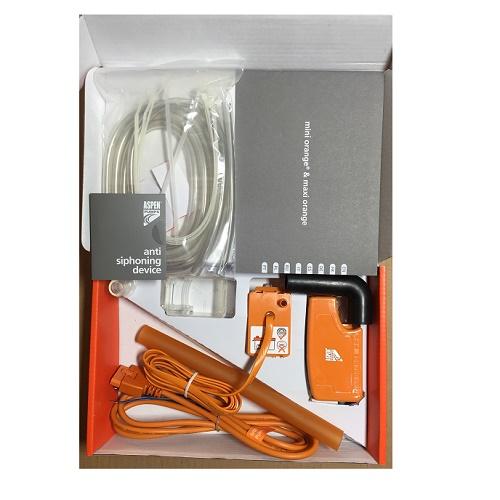

IN THE BOX:
• Mini Orange pump
• 1.5m Plug & play power cable
• Reservoir
• Reservoir lid with 1.5m sensor cable
• Submersible reservoir
• Anti siphon device
• Float & filter
• 1.5m Suction tube 6mm ID
• 220mm Orange inlet hose 14mm ID
• 150mm Vinyl breather tube 6mm ID
• Drain connector kit
• Fixing kit
• Install manual
| Brand | ASPEN (CAT 80) |
| Delivery | Next Day |
| Dimensions | 116 x 39 x 51 |
| Max Flow | 12L/h @ 0 head |
| Max Rec. Head | 10m |
| Max Suction Lift | 2m |
| Tank Capacity | n/a |
| Sound Level @ 1m | 21dB(A) |
| Rated | Non continuous |
| Class | II appliance |
| Max Unit Output | 16kW / 54,000Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | 6mm ID |
| Inlet/Outlet | n/a |
| IP Rating | IP21 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | Yes |
| Self Priming | Yes |
| Power | 230 VAC, 0.11A, 16W 50/60Hz |
| Guarantee | 1 Year |
