• Sits in trunking elbow
• Left or right install
• Range of trunking systems
• Easy access for servicing
Up to 46kW / 157,000Btu/h
Large commercial AC units
High wall split systems
Description

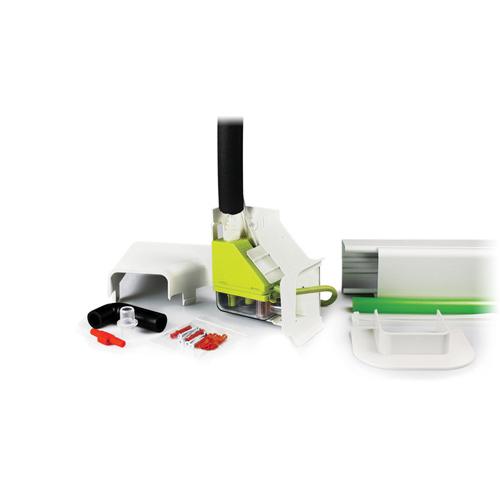

MAXI LIME (Pump only - no trunking included) CONDENSATE REMOVAL PUMP
Designed for larger units & humid environments. The Maxi Lime elbow pump gives you supreme power when needed.

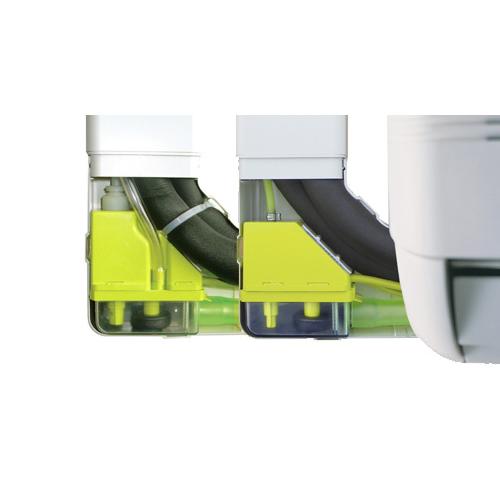

• Sits in trunking elbow
• Left or right install
• Range of trunking systems
• Easy access for servicing
Up to 46kW / 157,000Btu/h
Large commercial AC units
High wall split systems
Brand | ASPEN (CAT 80) |
Dimensions | 99 x 44 x 119 |
Max Flow | 35L/h @ 0 head |
Max Rec. Head | 15m |
Max Suction Lift | n/a |
Tank Capacity | n/a |
Sound Level @ 1m | 35dB(A) |
Rated | Non continuous |
Class | II appliance |
Max Unit Output | 46kW / 157,000Btu/h |
Max Water Temperature | 40o C / 104o F |
Discharge Tube | 6mm ID |
Inlet/Outlet | n/a |
IP Rating | IP24 |
Safety Switch | 3.0A Normally closed |
Thermal Protection | Yes |
Fully Potted | Yes |
Self Priming | Yes |
Power | 230 VAC, 0.1A, 16W, 50/60Hz |
Guarantee | 1 Year |
