• Quietest in its class
• Submersible secondary reservoir included
• Plug & play
Up to 16kW / 54,000Btu/h
Ducted units
Floor standing & Chassis units
High wall split systems
Description
SILENT+ MINI ORANGE CONDENSATE REMOVAL PUMP
The world’s no.1 mini pump becomes the quietest in its class! Featuring an acoustic damper, anti vibration tubing & bracket, the Silent+ Mini Orange is whisper quiet.

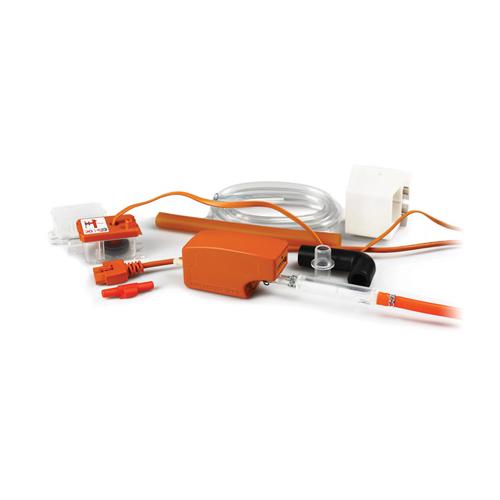

IN THE BOX:
• Silent+ Mini Orange pump
• 1.5m Plug & play power cable
• Acoustic damper and 1m orange discharge tube with connector
• Anti vibration bracket
• Reservoir
• Reservoir lid with 1.5m sensor cable
• Submersible reservoir
• Anti siphon device
• Float & filter
• 1.5m Suction tube 6mm ID
• 220mm Orange inlet hose 14mm ID
• 150mm Vinyl breather tube 6mm ID
• Drain connector kit
• Fixing kit
• Install manual
Brand | ASPEN (CAT 80) |
Dimensions | 116 x 39 x 51 |
Max Flow | 12L/h @ 0 head |
Max Rec. Head | 10m |
Max Suction Lift | 2m |
Tank Capacity | n/a |
Sound Level @ 1m | 19dB(A) |
Rated | Non continuous |
Class | II appliance |
Max Unit Output | 16kW / 54,000Btu/h |
Max Water Temperature | 40o C / 104o F |
Discharge Tube | 6mm ID |
Inlet/Outlet | n/a |
IP Rating | IP65 |
Safety Switch | 3.0A Normally closed |
Thermal Protection | Yes |
Fully Potted | Yes |
Self Priming | Yes |
Power | 230 VAC, 0.11A, 16W 50/60Hz |
Guarantee | 1 Year |
