- Operated with two sensors which detect change in air temperature
- Remote install possible
- Pumps contaminated water
- Can run dry, meaning no damage to the pump if this issue occurs
- Suitable for units up to 8.5kW / 29,000Btu/h
- 6.5L/h max. flow
- 12m max. head
Description

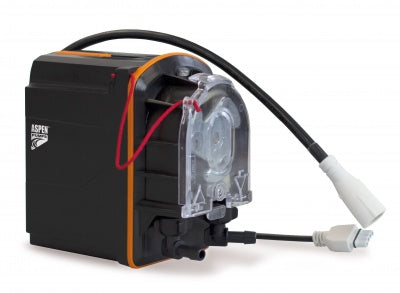

Aspen FP3390 Peri Pro Air Peristaltic Pump Replaces Universal FP2082/2
The new Peri Pro Air offers outstanding reliability with an industry first 5 year warranty*. Built upon stepper motor technology and software control, this version offers user programmable speed control to minimise audible noise and tube wear.
Most suited to environments where consistent climate control is critical, the Universal Peristaltic Pump from Aspen is suitable for both air conditioning and refrigeration systems.
The peristaltic pump operates using water level sensors. This allows the pump to detect and be triggered by the level of water in the condensate tray. The detector has two sensors within the head which warm up to 15°C above ambient.
When the lower sensor comes into contact with water, the heat conductivity from the sensor provides a temperature difference energising the pump. Once the level of the water has dropped below the tip of the sensor, the pump will continue until the sensor has completely dried out.
Included in the box you get:
- Universal Pump
- 3m Plug & Play Power/Sensor Cable
- Wall Mounted Bracket
- Fixing Kit
- Install Manual
Key Benefits and Features:
- Operated with two sensors which detect change in air temperature
- Remote install possible
- Pumps contaminated water
- Can run dry, meaning no damage to the pump if this issue occurs
- Suitable for units up to 8.5kW / 29,000Btu/h
- 6.5L/h max. flow
- 12m max. head
Technical Specifications:
Max Suction Lift: 3mSound Level at 1m: 47dB(A)
Power Supply: 230V AC 50-69Hz 0.2A
Max Water Temperature: 40°C / 104°F
Dimensions: 118mm(H) x 76mm(W) x 132mm(D)
Brand | ASPEN (CAT 80) |
Delivery | Next Day |
Dimensions | 118 x 76 x 132 |
Max Flow | 6.5L/h @ 0 head |
Max Rec. Head | 12m |
Max Suction Lift | 2m |
Tank Capacity | n/a |
Sound Level @ 1m | 47dB(A) |
Rated | Non continuous |
Class | II appliance |
Max Unit Output | 46kW / 157,000Btu/h |
Max Water Temperature | 40o C / 104o F |
Discharge Tube | 6mm ID |
Inlet/Outlet | n/a |
Safety Switch | 3.0A Normally closed |
Thermal Protection | Yes |
Fully Potted | Yes |
Self Priming | Yes |
Power | up to 8.5kW / 29,000Btu/h |
Guarantee | 5 Year |
