- 15L/h max. flow
- 12m max. head (flow rate 15L/h)
- 5 year warranty*
- Smart features
- Flexible installation with outstanding lift
- Easy to install with Patented mounting technology
Description

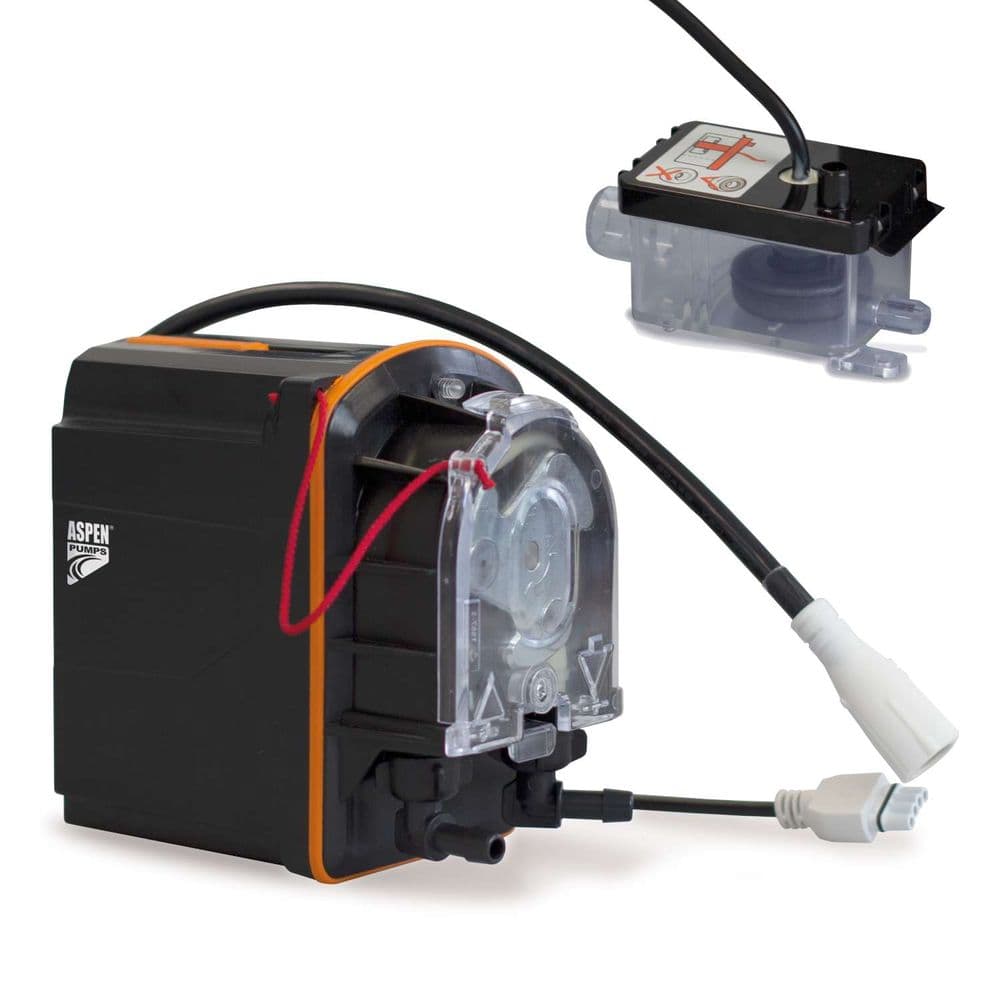

Aspen Peri Pro+
Float Based Peristaltic Condensate Removal Pump
The new Peri Pro+ pump offers outstanding reliability with an industry first 5 year warranty*. Built upon stepper motor technology and software control, this version offers smart pumping technology similar to the latest mini pumps, always minimising audible noise and tube wear.
Key Features
- 15L/h max. flow
- 12m max. head (flow rate 15L/h)
- 5 year warranty*
- Smart features
- Flexible installation with outstanding lift
- Easy to install with Patented mounting technology
Suitability
- High wall split systems; Ducted units; Floor standing & Chassis units
- Perfect for... hotel bedrooms and other remote install locations
Specification
PERI PRO+ @ 110-230 VAC 50/60HzMax. flow: 15L/h @ 12m head
Max. head: 12m
Max. suction lift: 3m
dB(A) @ 1m:
Power supply: 21 110-230 VAC, 3A, 50/60Hz
Rated: Continuously
Class: ll appliance (Double Insulated)
Max. ambient temperature: 40c / 104F
Inlet/outlet: 6mm ID
IP Protection: IP24
Safety switch: 5A NC relay
Self priming: ✓
| Brand | ASPEN (CAT 80) |
| Delivery | Next Day |
| Dimensions | 118 x 76 x 132 |
| Max Flow | 6.5L/h @ 0 head |
| Max Rec. Head | 12m |
| Max Suction Lift | 2m |
| Tank Capacity | n/a |
| Sound Level @ 1m | 47dB(A) |
| Rated | Non continuous |
| Class | II appliance |
| Max Unit Output | 46kW / 157,000Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | 6mm ID |
| Inlet/Outlet | n/a |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | Yes |
| Self Priming | Yes |
| Power | up to 8.5kW / 29,000Btu/h |
| Guarantee | 5 Year |
