Remote switch on/off
42 dBA
IPX4 Rated
3 year warranty
Description

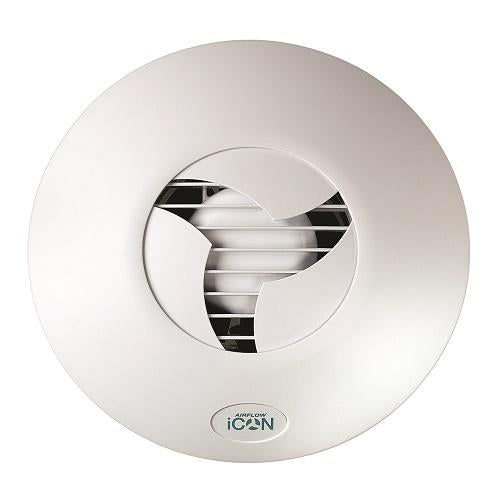

iCON 60 range is ideal for large utility and kitchens and light commercial use. The circular design means no squaring up is required, adding to the already simple installation procedure and the iris shutter design makes switching on and off almost silent and helps reduce external noise ingress.
The iCON 60 has Remote switch on/off control function
The fan has a 3year warranty,is designed to provide ventilation levels that comply with the latest Building Regulations, is 230-240volt 50hz, IPX4 rated with a flow rate up to 260m3/hr (34l/s).

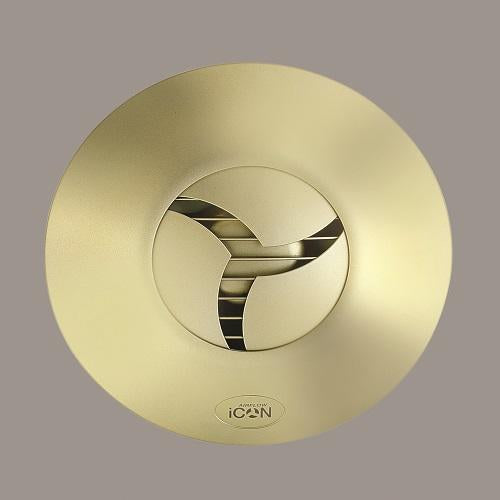

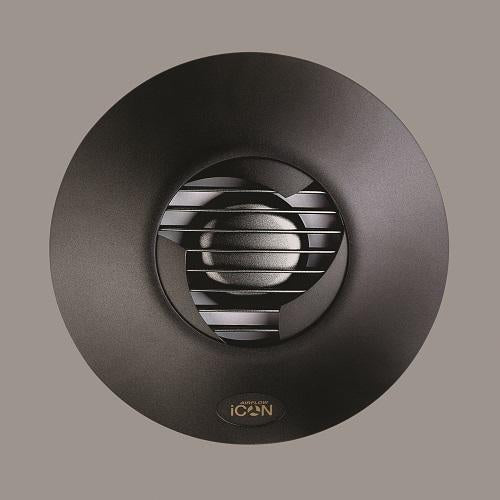

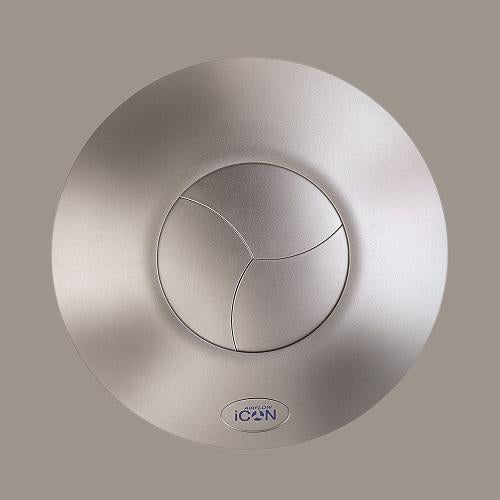

The white iCON 60 cover can also be changed so as to blend in better with the aesthetics of the room it is in. The choices are: Anthracite, Chrome, Sandstone and Silver.
An external 3A fuse is required for each fan unit.The product is fully compliant with the following safety standards: CE2004/105//EMC Directives and LVD 2006 195/EC. Switches for fans should be selected and sited in accordance with BS7161:2008.
Box Contains
1 x Complete Fan
1 x Instructions
1 x Screws and Fixings
| Brand | AIRFLOW SPV VENT (CAT 50) |
| Delivery | Next Day |
| Dimensions | 280 x 280 x 165 |
| Fan Location | Wall or Ceiling |
| Sound | 44.6dB(A) |
| Performance | 260 (72) |
| Integral Shutters | Yes |
| IP Rating | IPX4 |
| Maximum Duct Run | 3m or less |
| Power | 75 |
| Room Type | Utility/Kitchen |
| Running Mode | Intermittent |
| Safety Zone | Zone 1, 2 and Outside |
| Spigot Dimension | 150 |
| Guarantee | 3 Years |
