iCON15-72612601-TM

SKU: iCON15-72612601-TM-SILVER

Cover Colour Option: Silver
Price:
Sale price£108.17 inc VAT

Adjustable timer between 1- 30 minutes

30.3dBA

IPX4 Rated

3 year warranty


Description

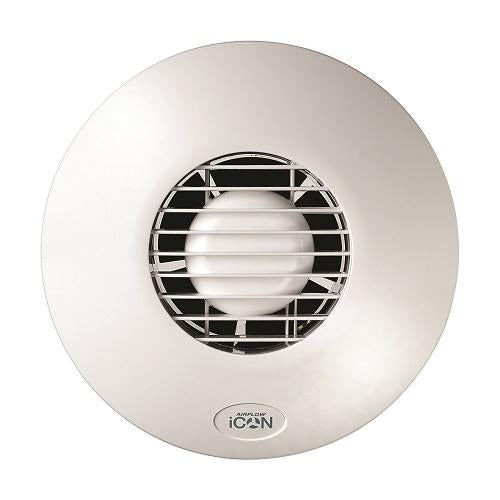

iCON 15 is ideal for toilets, en-suites, and small bathrooms. The circular design means no squaring up is required, adding to the already simple installation procedure and the iris shutter design makes switching on and off almost silent and helps reduce external noise ingress.

The iCON 15-TM has an adjustable run-on timer of between 1 - 30 minutes operated via a light switch or separate remote switch

iCON 15 has a a 3year warranty,is designed to provide ventilation levels that comply with the latest Building Regulations, is 230-240volt 50hz, IPX4 rated with a flow rate up to 68m3/hr (19l/s).

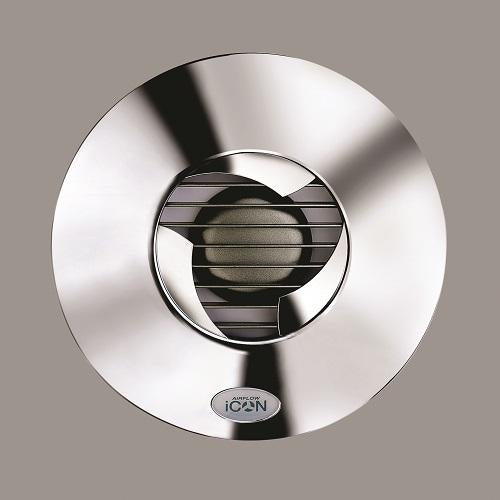

The white iCON 15 cover can also be changed so as to blend in better with the aesthetics of the room it is in. The choices are: Anthracite, Chrome, Sandstone and Silver. An external 3A fuse is required for each fan unit.The product is fully compliant with the following safety standards: CE2004/105//EMC Directives and LVD 2006 195/EC. Switches for fans should be selected and sited in accordance with BS7161:2008.

Box Contains

1 x Complete Fan

1 x Instructions

1 x Screws and Fixings

BrandAIRFLOW SPV VENT (CAT 50)
DeliveryNext Day
Dimensions197 x 197 x 40
Fan LocationWall or Ceiling
Sound35dB(A)
Performance68 (19)
Integral ShuttersYes
IP RatingIPX4
Maximum Duct Run3m or less
Power9.2
Room TypeToilet/Bathroom
Running ModeIntermittent
Safety ZoneZone 1, 2 and Outside
Spigot Dimension100
Guarantee3 Years
