Flow rate up to 19 l/sec (69 m³/hr)
Ductable for short runs
Silent shutter
Stylish design
Low energy, quiet in use
Complies with latest Building Regulations (F1 ventilation)
Choice of optional control
Wall/ceiling, recessed mounting
Upgrade your cover colour to match décor
3 year warranty
Description

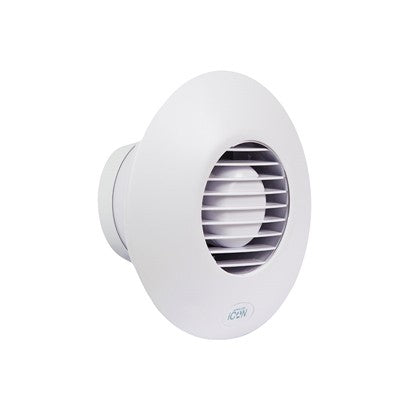

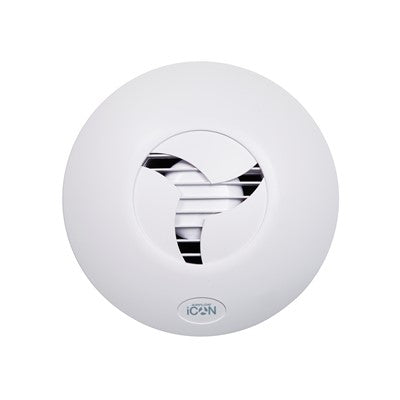

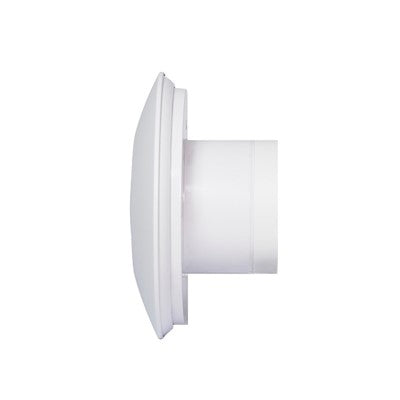

iCON 15 is ideal for toilets, en-suites, shower rooms and bathrooms.

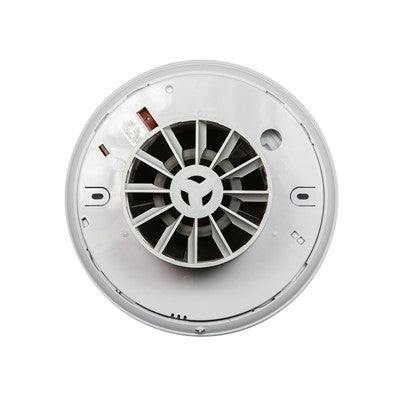

Recessed into the wall or ceiling, it is stylish and unobtrusive, even in the smallest space. The quiet axial fan has been designed with simplicity in mind. A quick, core drilled hole enables immediate fixing of iCON 15. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable recessed installation on uneven surfaces.
The optional 'snap-in' module is quick to fit and wire. Tiling is a breeze with the circular cover flange, reducing the need to 'make good' and one wipe and the cover is clean. Stylish, slim and unobtrusive in walls or ceilings. Unique iris shutter, prevents back draughts, operates silently and helps reduce noise ingress.
Interchangeable control modules match fan to installation requirements. Splash-proof, tiling friendly, wipe clean cover. Fan operates by remote switch (optional). No module required.
Main Features:
- Flow rate up to 19 l/sec (69 m³/hr)
- Ductable for short runs
- Silent shutter
- Stylish design
- Low energy, quiet in use
- Complies with latest Building Regulations (F1 ventilation)
- Choice of optional control
- Wall/ceiling, recessed mounting
- Upgrade your cover colour to match décor
- 3 year warranty
| Brand | AIRFLOW SPV VENT (CAT 50) |
| Delivery | Next Day |
| Dimensions | 197 x 197 x 40 |
| Fan Location | Wall or Ceiling |
| Sound | 35dB(A) |
| Performance | 68 (19) |
| Integral Shutters | Yes |
| IP Rating | IPX4 |
| Maximum Duct Run | 3m or less |
| Power | 9.2 |
| Room Type | Toilet/Bathroom |
| Running Mode | Intermittent |
| Safety Zone | Zone 1, 2 and Outside |
| Spigot Dimension | 100 |
| Guarantee | 3 Years |
