Product Description

Overview

The testo 320 basic features all the essential functions for carrying out flue gas analysis on domestic heating systems, including flue draught, pressure measurements, and differential temperature measurement. The flue gas analyser is easy to use with its full colour graphic display featuring a user-friendly menu guidance. The analyser measures both O2 and CO (4,000ppm sensor fitted as standard) and can also display calculated parameters such as combustion ratio, CO2, etc.

Advanced kit features include :

  • 4,000ppm CO sensor with automatic pump shut off to help prevent saturation.
  • 10 user selectable fuels
  • rechargable Li-ion battery
  • Adaptors and  accesories for pressure measurement, and differential temperature clamp probes supplied
  • Testo IR printer
  • Soft carry case with shoulder strap
  • Independently tested according to EN 50379 Parts 1-3

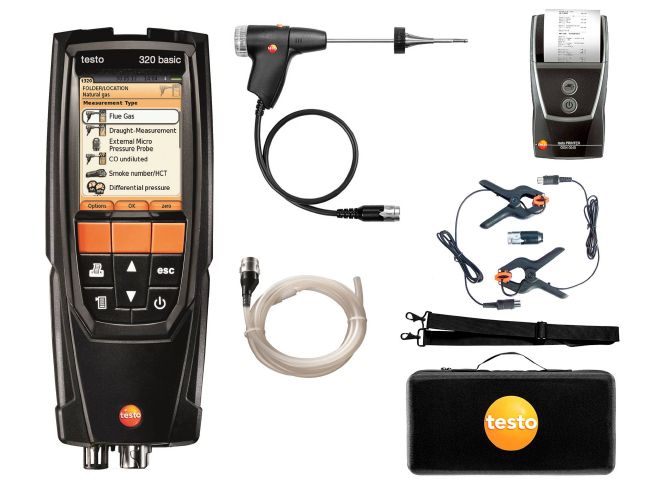

Delivery Scope

testo 320B Flue Gas Analyser, rechargeable battery and calibration protocol, Flue Gas Probe (180mm x 6mm diameter), Pressure hose connection kit, Differential temperature kit (2 x pipe clamp probes), testo infrared printer, soft carry case with shoulder strap, AC/USB power supply.

Technical Data

General technical data

Weight

573 g

Dimensions

240 x 85 x 65 mm

Operating temperature

-5 to +45 °C

Protection class

IP40

Display size

240 x 320 pixels

Display function

Colour graphic display

Power supply

Battery: 3.7 V / 2,400 mAh; Mains unit: 5 V / 1 A

Memory



Storage temperature

-20 to +50 °C
Flue gas O₂

Measuring range

0 to 21 Vol.%

Accuracy

±0.2 Vol.%

Resolution

0.1 Vol.%

Reaction time t₉₀

< 20 s
Differential Pressure flue gas Draught - Piezoresistive

Measuring range

-9.99 to +40 hPa

Accuracy

±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa)

±0.03 hPa (+0.61 to +3.00 hPa)

±1.5 % of mv (+3.01 to +40.00 hPa)

Resolution

0.01 hPa
Temperature

Measuring range

-40 to +1200 °C

Accuracy

±0.5 °C (0 to +100.0 °C)

±0.5 % of mv (Remaining Range)

Resolution

0.1 °C (-40 to +999.9 °C)

1 °C (> +1000 °C)
Flue gas degree of effectivity, Eta (calculated)

Measuring range

0 to 120 %

Resolution

0.1 %
Flue gas loss (calculated)

Measuring range

0 to 99.9 %

Resolution

0.1 %
Flue gas CO₂ calculation (calculated from O₂)

Measuring range

0 to CO₂ max (Display range)

Accuracy

±0.2 Vol.%

Resolution

0.1 Vol.%

Reaction time t₉₀

< 40 s
Pressure measurement

Measuring range

0 to +300 hPa

Accuracy

±0.5 hPa (0.0 to 50.0 hPa)

±1 % of mv (50.1 to 100.0 hPa)

±1.5 % of mv (Remaining Range)

Resolution

0.1 hPa
Flue gas CO (without H₂-compensation)

Measuring range

0 to 4000 ppm

Accuracy

±20 ppm (0 to 400 ppm)

±5 % of mv (401 to 2000 ppm)

±10 % of mv (2001 to 4000 ppm)

Resolution

1 ppm

Reaction time t₉₀

< 60 s
Ambient CO

Measuring range

0 to 4000 ppm

Accuracy

±20 ppm (0 to 400 ppm)

±5 % of mv (401 to 2000 ppm)

±10 % of mv (2001 to 4000 ppm)

Resolution

1 ppm

Measuring rate

< 60 s
BrandTESTO (CAT 100)
