Product Description

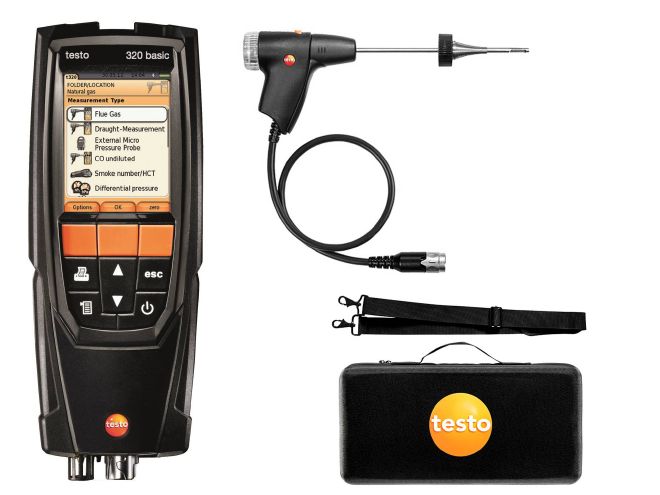

Standard kit features include :
* 4,000ppm CO sensor with automatic pump shut off to help prevent saturation.
*10 user selectable fuels
*rechargable Li-ion battery
*tightness and let-by pressure test routines included in menu (requires pressure connection adaptor)
*Flow and return temperature measurement (using additional accessory probes)
*Soft carry case with shoulder strapx
*Independently tested according to EN 50379 Parts 1-3
Delivery Scope
Technical Data
| General technical data | |
|---|---|
|
Weight |
573 g |
|
Dimensions |
240 x 85 x 65 mm |
|
Operating temperature |
-5 to +45 °C |
|
Protection class |
IP40 |
|
Display size |
240 x 320 pixels |
|
Display function |
Colour graphic display |
|
Power supply |
Battery: 3.7 V / 2,400 mAh; Mains unit: 5 V / 1 A |
|
Memory |
|
|
Storage temperature |
-20 to +50 °C |
| Flue gas O₂ | |
|---|---|
|
Measuring range |
0 to 21 Vol.% |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
< 20 s |
| Differential Pressure flue gas Draught - Piezoresistive | |
|---|---|
|
Measuring range |
-9.99 to +40 hPa |
|
Accuracy |
±0.02 hPa or ±5 % of mv (-0.50 to +0.60 hPa) ±0.03 hPa (+0.61 to +3.00 hPa) ±1.5 % of mv (+3.01 to +40.00 hPa) |
|
Resolution |
0.01 hPa |
| Temperature | |
|---|---|
|
Measuring range |
-40 to +1200 °C |
|
Accuracy |
±0.5 °C (0 to +100.0 °C) ±0.5 % of mv (Remaining Range) |
|
Resolution |
0.1 °C (-40 to +999.9 °C) 1 °C (> +1000 °C) |
| Flue gas degree of effectivity, Eta (calculated) | |
|---|---|
|
Measuring range |
0 to 120 % |
|
Resolution |
0.1 % |
| Flue gas loss (calculated) | |
|---|---|
|
Measuring range |
0 to 99.9 % |
|
Resolution |
0.1 % |
| Flue gas CO₂ calculation (calculated from O₂) | |
|---|---|
|
Measuring range |
0 to CO₂ max (Display range) |
|
Accuracy |
±0.2 Vol.% |
|
Resolution |
0.1 Vol.% |
|
Reaction time t₉₀ |
40 s |
| Pressure measurement | |
|---|---|
|
Measuring range |
0 to +300 hPa |
|
Accuracy |
±0.5 hPa (0.0 to 50.0 hPa) ±1 % of mv (50.1 to 100.0 hPa) ±1.5 % of mv (Remaining Range) |
|
Resolution |
0.1 hPa |
| Flue gas CO (without H₂-compensation) | |
|---|---|
|
Measuring range |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) |
|
Resolution |
1 ppm |
|
Reaction time t₉₀ |
< 60 s |
| Ambient CO | |
|---|---|
|
Measuring range |
0 to 4000 ppm |
|
Accuracy |
±20 ppm (0 to 400 ppm) ±5 % of mv (401 to 2000 ppm) ±10 % of mv (2001 to 4000 ppm) |
|
Resolution |
1 ppm |
|
Measuring rate |
< 60 s |
| Brand | TESTO (CAT 100) |
