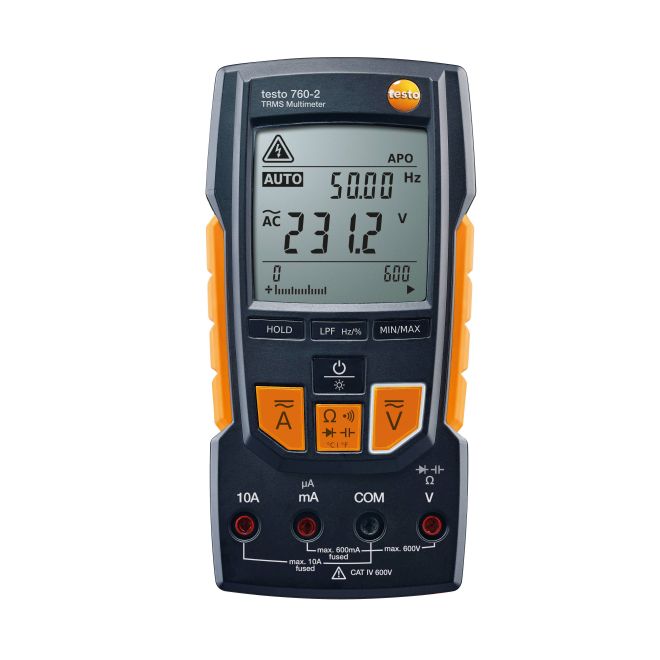

testo 760-2 - TRMS Multimeter

• • • • • • Easy, reliable work thanks to automatic measurement parameter detection

          • Current measurement in the µA range

          • True root mean square measurement - TRMS

          • Low-pass filter for accurate measurement results on frequency converter controlled motors

          The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. You can also measure current in the µA range and determine the true root mean square using this digital multimeter.

  • Overview

    The testo 760 digital multimeter family comprises three models for all important electrical measuring tasks. Function keys replace the traditional dial on all three instruments, which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys. This prevents accidentally blowing the meter’s fuse because of incorrect connections.

    The testo 760-1 model is the standard version for virtually all daily measuring tasks.

    The testo 760-2 is differentiated by a larger current measurement range, the true root mean square measurement - TRMS - and a low-pass filter.

    The testo 760-3 is the model with the highest specification and, in addition to the features of the other two models, it has a voltage range of up to 1,000 V, along with higher measuring ranges for frequency and capacitance.



    Delivery Scope

    testo 760-2, batteries, 1 set of measuring cables and 1 x adapter for type K thermocouples. Additonal features: True RMS measurement function, Larger Current measuring range




    ---

    Technical Data

    Temperature - TC Type K (NiCr-Ni)
    Measuring range	-20 to +500 °C
    Accuracy	±1 °C (0 to +100 °C)
    Resolution	0.2 °C

    DC voltage
    Measuring range	0.1 to 600 V
    Resolution	max. 0.1 mV
    Accuracy	± (0.8 % of mv + 3 Digit)

    AC voltage
    Measuring range	0.1 mV to 600 V
    Resolution	max. 0.1 mV
    Accuracy	± (1.0 % of mv + 3 Digit)

    DC current
    Measuring range	0.1 μA to 10 A
    Resolution	max. 0.1
    Accuracy	± (1.5 % of mv + 5 Digit)

    AC current
    Measuring range	0.1 μA to 10 A
    Resolution	max. 0.1 μA
    Accuracy	± (1.5 % of mv + 5 Digit)

    Resistance
    Resolution	max. 0.01 Ohm
    Measuring range	0.01 to 60.00 MOhm
    Accuracy	± (1.5 % of mv + 3 Digit)

    Capacitance
    Resolution	max. 0.01 nF
    Measuring range	0.001 nF to 30000 μF
    Accuracy	± (1.5 % of mv + 5 Digit)

    Frequency
    Resolution	max. 0.1 Hz
    Measuring range	0.001 Hz to 30.00 MHz
    Accuracy	± (0.1 % of mv + 1 Digit)

    General technical data
    Operating humidity	0 to 80 %RH
    Weight	340 g
    Dimensions	167 x 85 x 45 mm
    Operating temperature	-10 to +50 °C
    Product colour	Black
    Protection class	IP64
    Standards	EN 61326-1; EN 61010-2-033; EN 61140
    Battery type	3 AAA micro batteries
    Display type	LCD (Liquid Crystal Display)
    Display size	2 lines
    Interface	4 measuring jacks
    Storage temperature	-15 to +60 °C
    Overvoltage Category	CAT III 1000V; CAT IV 600V
    Authorizations	CSA CSA; CE
    Internal_resistance	11 MOhm (AC / DC)

    Instrument Measurement Functions
    Diode test	yes
    Continuity testing	yes
    Current probe measurement with adapter	yes
    Display ligthing	yes
    Hold	yes
    MinMax	yes
    Temperature measurement with adapter	yes
    True RMS	yes
    Low-pass filter	yes
    Duty cycle measurement	yes
    Display (counts)	6,000
    μA current measuring range	yes
    Autom. measurement parameter detection	yes
