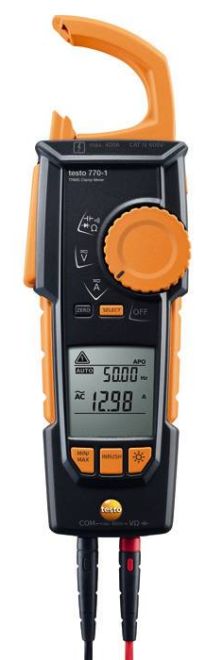

testo 770-1 - TRMS Clamp meter

• • • • • • • • ully retractable pincer arm for maximum flexibility

              • Auto AC/DC

              • Large two-line display

              • Measures the common electrical parameters

              The testo 770-1 clamp meter is ideally suited for non-contact current measurement on tightly packed power cables or conductors with a small diameter. The unique grab mechanism means you can grab each individual cable easily and safely.

  • Overview

    The three instruments in the testo 770 clamp meter family are ideally suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique grab mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also ensures reliable work: in the current and voltage area, all three instruments detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.

    The testo 770-1 model is the standard version for daily measuring tasks, including starting current measurement.

    The testo 770-2 also has a μA range as well as an integrated temperature adapter for all type K thermocouples.

    In addition to that, the testo 770-3 includes real-time power measurements (Watts), Power Factor, and Bluetooth. The free Testo Smart Probes App can be used for remote viewing, monitoring, data logging, and creating reports via Bluetooth. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.



    Delivery Scope

    testo 770-1 TRMS clamp meter, batteries and 1 set of measuring cables. See product specs below for details.




    ---

    Technical Data

    DC voltage
    Measuring range	1.0 to 600.0 V
    Resolution	max. 1 mV
    Accuracy	± (0.8 % of mv + 3 Digit)

    AC voltage
    Measuring range	1.0 mV to 600.0 V
    Resolution	max. 1 mV
    Accuracy	± (1.0 % of mv + 3 Digit)

    DC current
    Measuring range	0.1 to 400 A
    Resolution	max. 0.1
    Accuracy	± (2 % of mv + 5 Digit)

    AC current
    Measuring range	0.1 to 400 A
    Resolution	max. 0.1 A
    Accuracy	± (2 % of mv + 5 Digit)

    Resistance
    Resolution	max. 0.1 Ohm
    Measuring range	0.1 to 40.00 MOhm
    Accuracy	± (1.5 % of mv + 3 Digit)

    Capacitance
    Resolution	max. 0.01 nF
    Measuring range	10 nF to 100.0 μF
    Accuracy	± (1.5 % of mv + 5 Digit)

    Frequency
    Measuring range	10 nF to 100.0 μF
    Accuracy	±(0.1 % + 1 Digit)

    General technical data
    Operating humidity	0 to 80 %RH
    Weight	378 g
    Dimensions	249 x 96 x 43 mm
    Operating temperature	-10 to +50 °C
    Product colour	Black
    Standards	EN 61326-1; EN 61010-2-032; EN 61140
    Battery type	3 AAA micro batteries
    Display type	LCD (Liquid Crystal Display)
    Display size	2 lines
    Interface	2 measuring jacks
    Storage temperature	-15 to +60 °C
    Overvoltage Category	CAT IV 600V; CAT III 1000V
    Authorizations	CSA; CE
    Internal_resistance	11 MOhm (AC / DC)

    Instrument Measurement Functions
    Diode test	yes
    Continuity testing	yes
    Display ligthing	yes
    Hold	yes
    MinMax	yes
    True RMS	yes
    Inrush current measurement	yes
    Display (counts)	4,000
    Autom. measurement parameter detection	yes
