Fully retractable pincer arm to make your work easy
Auto AC/DC and large two-line display
Measuring functions for starting current on electric motors and μA measurements
Temperature adapter for type K thermocouples

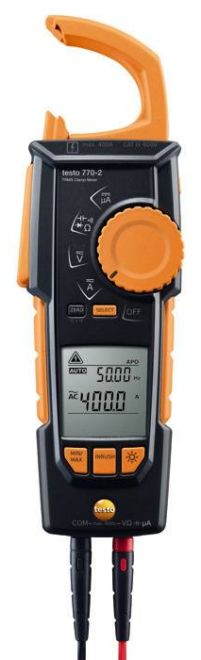

The innovative grab mechanism makes the testo 770-2 the perfect clamp meter for non-contact measurements on tightly packed cables with a small diameter. In addition to the standard functions of the testo 770-1 clamp meter, it also offers a temperature adapter and measures current in the µA range
Details
Product Description
Overview
The three instruments in the testo 770 clamp meter family are ideally suited for current measurement in switching cabinets. One of the two pincer arms can be fully retracted into the instrument. This unique grab mechanism means that cables in tight switching cabinets can be easily grabbed. The automatic measurement parameter detection also ensures reliable work: in the current and voltage area, all three instruments detect direct and alternating current and select other parameters such as resistance, continuity, diode and capacitance automatically.
The testo 770-1 model is the standard version for daily measuring tasks, including starting current measurement.
The testo 770-2 also has a μA range as well as an integrated temperature adapter for all type K thermocouples.
In addition to that, the testo 770-3 includes real-time power measurements (Watts), Power Factor, and Bluetooth. The free Testo Smart Probes App can be used for remote viewing, monitoring, data logging, and creating reports via Bluetooth. The powerful app allows you to create custom reports that include photos, data, and graphs that can be saved or sent via email.
Delivery Scope
testo 770-2 Clamp Meter, batteries, 1 set of measuring cables. Additional features: True RMS measurement function, μA measurement range, integrated temperature adapter for all type K thermocouples. See product specs below for details.
Technical Data
| Temperature - TC Type K (NiCr-Ni) |
|
Measuring range
|
-20 to +500 °C
|
|
Accuracy
|
±1 °C (0 to +100 °C)
|
|
Resolution
|
0.2 °C
|
| DC voltage |
|
Measuring range
|
1.0 to 600.0 V
|
|
Resolution
|
max. 1 mV
|
|
Accuracy
|
± (0.8 % of mv + 3 Digit)
|
| AC voltage |
|
Measuring range
|
1.0 mV to 600.0 V
|
|
Resolution
|
max. 1 mV
|
|
Accuracy
|
± (1.0 % of mv + 3 Digit)
|
| DC current |
|
Measuring range
|
0.1 to 400.0 A (clamp)
0.1 to 400.0 μA (measuring cables)
|
|
Resolution
|
0.1 (clamp)
0.1 (measuring cables)
|
|
Accuracy
|
± (2 % of mv + 5 Digit) (clamp)
± (1.5 % of mv + 5 ) (measuring cables)
|
| AC current |
|
Measuring range
|
0.1 to 400.0 A (clamp)
0.1 to 400 μA (measuring cables)
|
|
Resolution
|
0.1 A (clamp)
0.1 μA (measuring cables)
|
|
Accuracy
|
± (2 % of mv + 5 Digit) (clamp)
± (1.5 % of mv + 5 Digit) (measuring cables)
|
| Resistance |
|
Resolution
|
max. 0.1 Ohm
|
|
Measuring range
|
0.1 to 40.00 MOhm
|
|
Accuracy
|
± (1.5 % of mv + 3 Digit)
|
| Capacitance |
|
Resolution
|
max. 0.01 nF
|
|
Measuring range
|
10 nF to 100.0 μF
|
|
Accuracy
|
± (1.5 % of mv + 5 Digit)
|
| General technical data |
|
Operating humidity
|
0 to 80 %RH
|
|
Weight
|
378 g
|
|
Dimensions
|
249 x 96 x 43 mm
|
|
Operating temperature
|
-10 to +50 °C
|
|
Product colour
|
Black
|
|
Connectable probes
|
1 x temperature probe (adapter required for type K thermocouples)
|
|
Standards
|
EN 61326-1; EN 61010-2-032; EN 61140
|
|
Battery type
|
3 AAA micro batteries
|
|
Display type
|
LCD (Liquid Crystal Display)
|
|
Display size
|
2 lines
|
|
Interface
|
2 measuring jacks
|
|
Storage temperature
|
-15 to +60 °C
|
|
Overvoltage Category
|
CAT IV 600V; CAT III 1000V
|
|
Authorizations
|
CSA; CE
|
|
Internal_resistance
|
11 MOhm (AC / DC)
|
| Instrument Measurement Functions |
|
Diode test
|
yes
|
|
Continuity testing
|
yes
|
|
Display ligthing
|
yes
|
|
Hold
|
yes
|
|
MinMax
|
yes
|
|
Temperature measurement with adapter
|
yes
|
|
True RMS
|
yes
|
|
Inrush current measurement
|
yes
|
|
Display (counts)
|
4,000
|
|
μA current measuring range
|
yes
|
|
Autom. measurement parameter detection
|
yes
|
