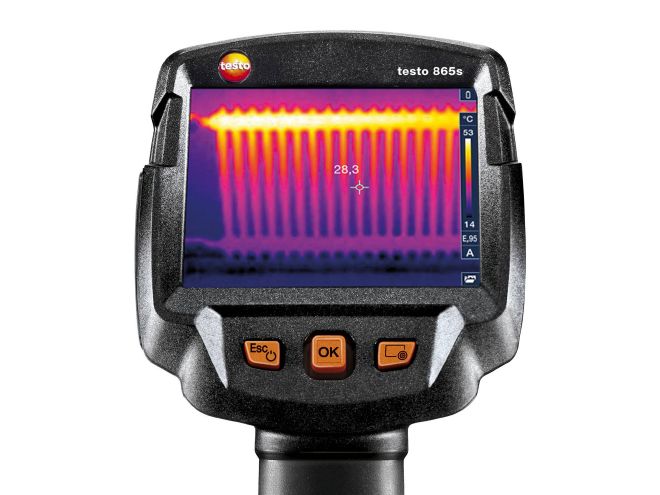

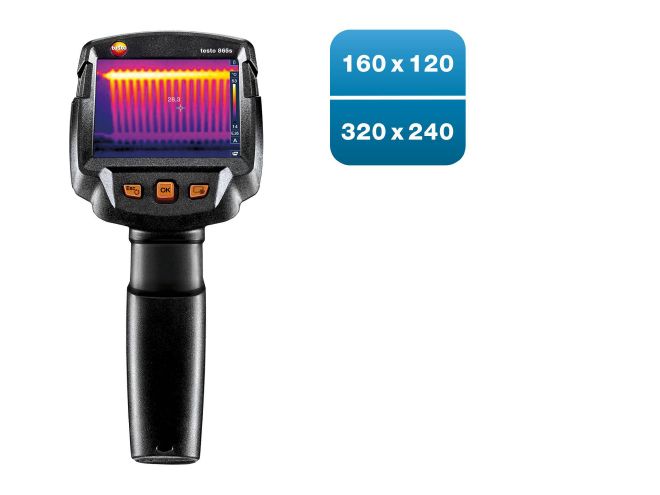

testo 865s - Thermal imaging camera (160 x 120 pixels)
testo 865s - Thermal imaging camera (160 x 120 pixels)
Roll over image to zoom in Click on image to zoom
testo 865s - Thermal imaging camera (160 x 120 pixels)
testo 865s - Thermal imaging camera (160 x 120 pixels)

testo 865s - Thermal imaging camera (160 x 120 pixels)

SKU: 5608651

Price:
£762.60 inc VAT

Description


          • Image quality with IR resolution of 160 x 120 pixels (with testo SuperResolution technology 320 × 240 pixels)

          • Thermal sensitivity of 0.1 °C

          • Automatic detection of hot and cold spots

          • Free analytical software for creating professional reports

          • Fast measurement with fixed focus

          • Measuring accuracy of ±2 °C

          The thermal imager testo 865s is the ideal entry into the world of thermography. It impresses with the best image quality in its class and intuitive operation in a modern tile look. The testo 865s fits comfortably in the hand and is robust enough to withstand the rigours of everyday use. Helpful functions such as IFOV-Warner and ScaleAssist ensure even better thermal images. All that combined with an unbeatable price-performance ratio. Switch on point, know more.

  • Details

    Product Description

    The testo 865s thermal imager offers professional technology and concentrates on functions which are needed in a contractor's daily work. The testo 865s is a user-friendly thermal imager, optimized for fast and efficient work. With the testo ScaleAssist functions ensuring optimum setting of the thermal image scale for building thermography and the IFOV warner making sure you avoid measurement errors, you will always generate the perfect infrared image.


    Areas of application of the testo 865s thermal imager

    Detect leaks, identify overheated connections, pinpoint thermal bridges or detect structural defects. The testo 865s thermal imager is ideal for applications in daily maintenance and installation work in trade and industry. It enables time-saving quality assurance and ensures reliable production control.


    Technical highlights of the testo 865s thermal imager

    The testo 865s thermal imager stands out thanks to its easy operation and has the following impressive technical features:

    • Very good image quality due to high resolution: 19,200 temperature measuring points ensure precise thermography. Infrared resolution of 160 x 120 pixels – via integrated SuperResolution Technology 320 x 240 pixels
    • Visualize temperature differences from 0.1°C
    • Critical temperature conditions are directly displayed via automatic hot-cold spot recognition
    • The IFOV warner means the distance from the measurement object / measurement spot size is determined and the measurement spot is shown on the thermal image – you therefore avoid measurement errors because the camera shows you exactly what you can measure
    • The testo ScaleAssist automatically ensures optimum setting of the thermal image scale, which means you generate objectively comparable and error-free thermal images, for example of the thermal insulation behaviour of buildings
    • Pro software for image evaluation on the PC
    • You can choose to save thermal images as JPEGs

    Delivery Scope

    testo 865s thermal imager, including USB cable, mains unit, lithium-ion rechargeable battery, IRSoft professional software (free download), commissioning instructions, short instructions, calibration protocol and case.




    Technical Data

    Standards and warranty

    EU-/EG-guidelines

    EMC: 2014/30/EU
    Infrared image output

    Infrared resolution

    160 x 120 pixels

    Thermal sensitivity

    <0.1 °C (100 mK)

    Field of view

    31° x 23°

    Minimum focus distance

    <0.5 m

    Geometric resolution (IFOV)

    3.4 mrad

    SuperResolution (Pixel)

    320 x 240 pixels

    SuperResolution (IFOV)

    2.1 mrad

    Image refresh rate

    9 Hz

    Focus

    Fixed focus

    Spectral range

    7.5 to 14 µm
    Image presentation

    Display type

    8.9 cm (3.5") TFT, QVGA (320 x 240 pixels)

    Display option

    IR image only

    Colours

    4 (iron, rainbow, cold-hot, grey)
    Measurement

    Measuring range

    -20 to +280 °C

    Accuracy

    ±2 °C, ±2 % of mv

    Emissivity

    0.01 to 1

    Reflected temperature

    manual
    Measuring function

    Analysis function

    Mean point measurement, hot/cold-spot recognition, Delta T

    IFOV warner

    Included

    testo ScaleAssist

    Included
    Imager equipment

    Full screen mode

    Included

    JPEG storage

    Included

    Video streaming

    via USB

    Standard lens

    31° x 23°

    Interface

    USB 2.0 Micro B
    Imager storage

    File format image

    .bmt; .jpg; export option in .bmp; .jpg; .png; .xls; .csv

    Storage device

    Internal Memory (2.8 GB)
    Power supply

    Battery type

    Fast-charging, Li-ion battery can be changed on-site

    Operating time

    4.0 h

    Mains operation

    yes
    Ambient Condition

    Air humidity

    20 to 80 %RH non-condensing

    Housing protection class

    IP54

    Vibration

    2G

    Storage temperature

    -30 to +60 °C

    Operating temperature

    -15 to +50 °C
    Physical specification

    Product-/housing material

    PC - ABS

    Weight

    510 g

    Dimensions

    219 x 96 x 95 mm
    PC software

    System requirements

    Windows® 10; Windows® 8.1
    General technical data

    Product colour

    Black

    Display ligthing

    bright / normal / dark
BrandTESTO (CAT 100)
