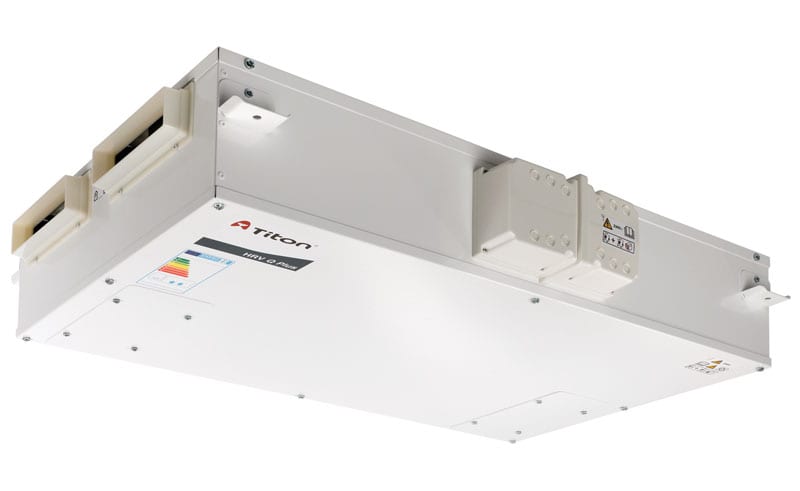

The H200 Q Plus continuously running horizontal whole-house ventilation unit with heat recovery is independently tested by the BRE. It is ideal for flats due to its low profile.
Description
The H200 Q Plus continuously running horizontal whole-house ventilation unit with heat recovery is independently tested by the BRE. It is ideal for flats due to its low profile.
Combining low power consumption and a highly efficient heat exchanger, this unit enhances SAP performance via Appendix Q and remains versatile enough in size to be equally functional in large through to small apartments alike.
The H200 Q Plus Range of MVHR unit comes in two different models; the ‘HMB’ & ‘B’ models which are part of our Eco version range. Each set out
Features & Benefits
- Low profile
- Extremely low SFP; down to 0.55 W/l/s
- Highly efficient heat exchanger; up to 83%
- Airflow up to 83 l/s (300 m3/h) at 100 Pa
- Intelligent controller, quick and easy to commission
- Fully adjustable boost overrun timer 0-60 minutes; use with non-latching (momentary) switches to prevent unit from being accidentally left in boost mode
- Accepts either 204mm x 60mm rectangular ducting, 150mm or 160mm diameter ducting, no adaptors required
- Intelligent frost protection, stepped reduction of supply air rates prevents HRV unit from freezing
- Setback facility to reduce ventilation where local regulations allow
- Volt free switching control
- IP33 rating
- ISO Coarse 65% (G4) filters as standard, ISO ePM1 55% (F7) as an option
- Pleated cardboard frame filters
- Independent fan adjustment
- Effective in reducing pollutants in the home and improving Indoor Air Quality (IAQ), therefore reducing the risk of Toxic Home Syndrome
Technical Information
Product Codes and Specific Features
Eco Versions:
Eco HMB Models:
- Intelligent Summer Bypass & humidity controls
- SUMMERboost® facility
- Compatible with auralite® (TP518) status indicator and aura-t™ (TP539) controller
| Brand | TITON CVU CAT 63 |
| Delivery | Next Day |
