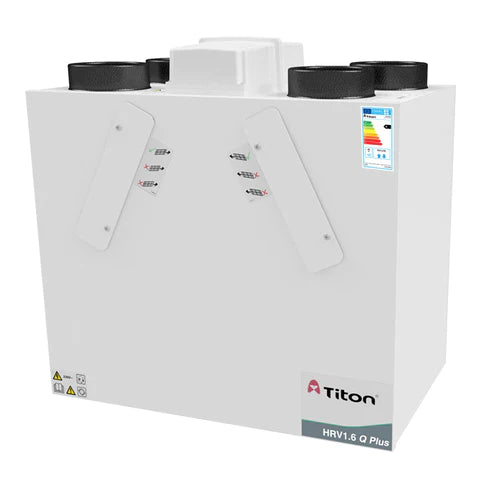

The enhanced capacity HRV1.6 Q Plus continuously running whole-house ventilation unit with heat recovery is independently tested by the BRE maintains an ultra compact size despite its improved results.
Description
The handing of the unit – left or right hand, refers to the side the ducts to/from atmosphere are positioned. i.e. a left hand (LH) unit will have the intake and exhaust ducts to/from atmosphere positioned on the left hand side of the unit and vice versa for the right hand
The enhanced capacity HRV1.6 Q Plus continuously running whole-house ventilation unit with heat recovery is independently tested by the BRE maintains an ultra compact size despite its improved results.
Combining extremely low power consumption and a highly efficient heat exchanger, this unit enhances SAP performance via Appendix Q, and yet remains versatile enough in size to be equally as functional in larger apartments as it is in medium to large sized dwellings.
The HRV1.6 Q Plus Range of MVHR unit comes in two different models; the ‘HMB’ & ‘B’ models which are part of our Eco version range. Each set
- Highly versatile compact unit
- Extremely low Specific Fan Power; down to 0.49 W/l/s
- Highly efficient heat exchanger; up to 89%
- Airflow up to 100 l/s (359m3/h) at 100 Pa. Enthalpy airflow up to 88 l/s (317 m3/h) at 100 Pa
- Accepts 125mm ducting no adaptors required
- Intelligent frost protection, stepped reduction of supply air rates prevents HRV unit from freezing
- ISO Coarse 55% (G3) filters as standard with ISO Coarse 60% (G4) as an option
- Fully adjustable boost overrun timer 0-60 minutes; can be used with non-latching (momentary) switches to prevent unit from being accidentally left in boost mode
- Volt free switching control
- Intelligent controller, quick and easy to commission
- Lightweight for easy handling
- Quick fix mounting bracket
- IP32 rating
- On board aura-t™ option
- Patented
- Independent fan adjustment
- Effective in reducing pollutants in the home and improving Indoor Air Quality (IAQ), therefore reducing the risk of Toxic Home Syndrome
Enthalpy Option Available – Features & Benefits
- Airflow up to 88 l/s (317 m3/h) at 100 Pa
- No transfer of gases or pollutants – only heat and water vapour are transferred by the membrane
- Long life cycle – permanent transmission parameters
- Minimum leakage
- Optimum flow behaviour, low pressure loss
- Frost- and heat-proof
- High, sensitive and latent transmission rate
- Antimicrobial (Microban® – integrated hygiene protection)
- Can be cleaned using water
- European manufactured heat cell
| Brand | TITON CVU CAT 63 |
| Delivery | Next Day |
