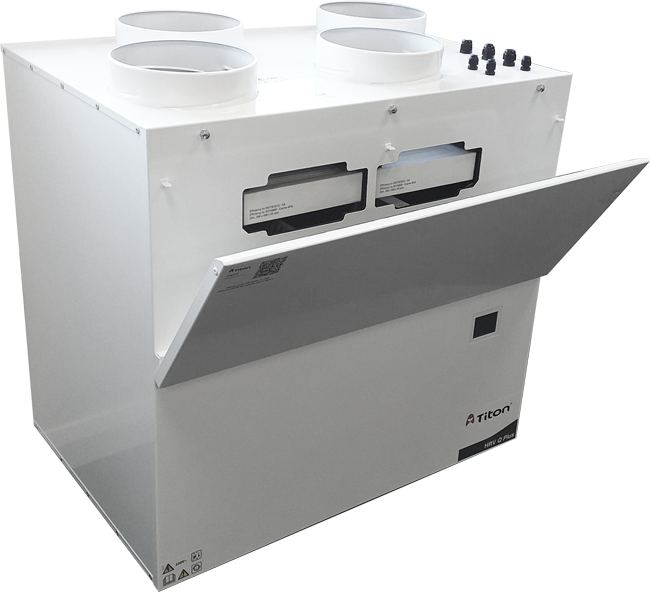

The new HRV20 HE Q Plus continuously running whole-house ventilation unit with heat recovery (MVHR) has been specifically designed to expand Titon’s current HRV range by offering airflows of up to 178 l/s (640m3/h).
Description
The handing of the unit – left or right hand, refers to the side the ducts to/from atmosphere are positioned. i.e. a left hand (LH) unit will have the intake and exhaust ducts to/from atmosphere positioned on the left hand side of the unit and vice versa for the right hand
The new HRV20 HE Q Plus continuously running whole-house ventilation unit with heat recovery (MVHR) has been specifically designed to expand Titon’s current HRV range by offering airflows of up to 178 l/s (640m3/h).
Combining extremely low power consumption and a highly efficient heat exchanger (92%) specifically designed to enhance SAP performance via Appendix Q and can be incorporated into larger apartments or dwellings.
The HRV20 HE Q Plus Range of MVHR unit comes in two different models; the ‘HMB’ & ‘B’ models which are part of our Eco version range. Each set
Features & Benefits
- Highly versatile compact unit
- Extremely low Specific Fan Power of 0.48 W/l/s
- Highly efficient heat exchanger; up to 92%
- Airflow up to 178 l/s (640 m3/h) at 100 Pa. Enthalpy unit airflow up to 183 l/s (657 m3/h) at 100 Pa
- Accepts 200mm diameter ducting
- Intelligent frost protection, stepped reduction of supply air rates prevents HRV unit from freezing
- ISO Coarse 65% (G4) bypass filter set fitted as standard. ISO Coarse 65% (G4)/ISO ePM1 75% (F7) available on request.
- Fully adjustable boost overrun timer 0-60 minutes; can be used with non-latching (momentary) switch to prevent unit from being accidentally left in boost mode
- Volt free switching control
- Intelligent controller, quick and easy to commission
- aura-t™ fitted on board as standard for HMB models and optional for B models
- Quick fix mounting bracket
- IP33 rating
- Patented
- Independent fan adjustment
- Effective in reducing pollutants in the home and improving Indoor Air Quality (IAQ), therefore reducing the risk of Toxic Home Syndrome
- Available in left and right handed configurations
Enthalpy Option Available – Features & Benefits
- Airflow up to 183 l/s (657 m3/h) at 100 Pa
- No transfer of gases or pollutants – only heat and water vapour are transferred by the membrane
- Long life cycle – permanent transmission parameters
- Minimum leakage
- Optimum flow behaviour, low pressure loss
- Frost- and heat-proof
- High, sensitive and latent transmission rate
- Antimicrobial (Microban® – integrated hygiene protection)
- Can be cleaned using water
- European manufactured heat cell
Technical Information
Product Codes and Specific Features
Eco Versions:
Eco HMB Models:
- Fitted with aura-t™ controller on board as standard
- Intelligent Summer Bypass & humidity controls
- SUMMERboost® facility
- Available in left and right handed configurations
- Compatible with auralite® HRV (TP518) status indicator and aura-t™ (TP539) controller
- Fitted with removable filter covers on the front panel
