Ventilation Fan for Toilets, En-suites, Bathrooms & Kitchens iCON30-72687103-HTM

SKU: iCON30-72687103-HTM-WHITE

Cover Colour Option: White
Price:
Sale price£155.46 inc VAT

Adjustable humidistat, adjustable run-on timer and optional use momentary pull cord timer activation

33.6dBA

IPX4 Rated

3 year warranty

Description

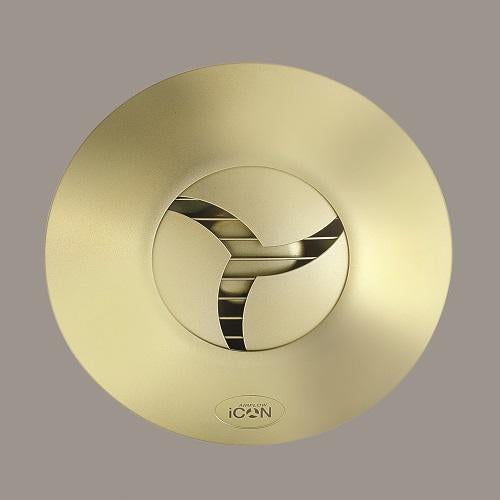

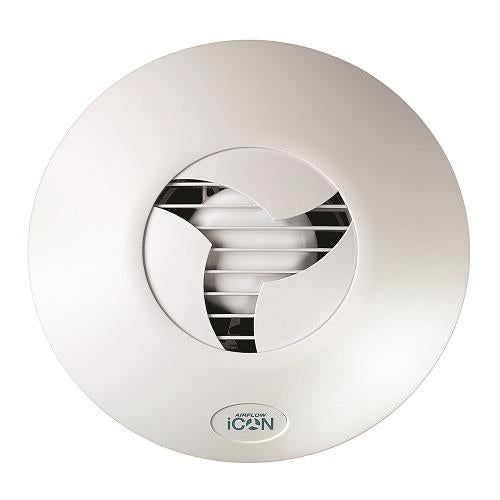

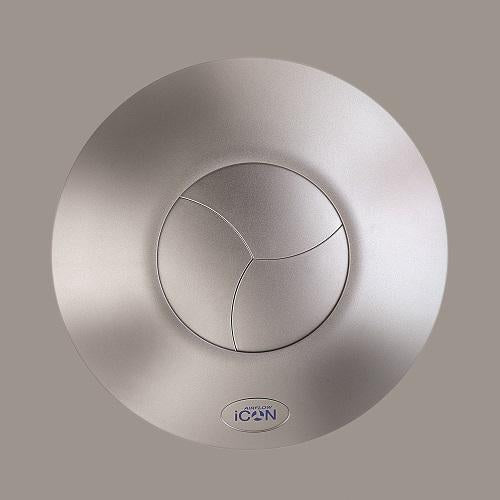

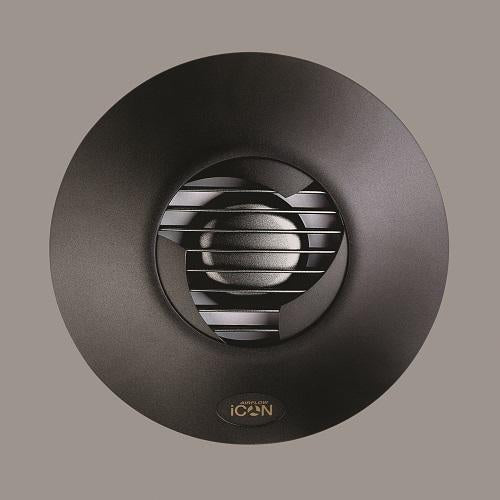

iCON 30S is ideal for toilets, en-suites, bathrooms and kitchens (when installed in-line with Building Regulations). The circular design means no squaring up is required, adding to the already simple installation procedure and the iris shutter design makes switching on and off almost silent and helps reduce external noise ingress. The iCON 30 HTM has adjustable humidity control between 40% - 90% RH, adjustable run-on timer, and an optional use momentary pull cord to activate the timer iCON 30 has a a 3year warranty,is designed to provide ventilation levels that comply with the latest Building Regulations, is 230-240volt 50hz, IPX4 rated with a flow rate up to 118m3/hr (32l/s). The white iCON 30 cover can also be changed so as to blend in better with the aesthetics of the room it is in. The choices are: Anthracite, Chrome, Sandstone and Silver. An external 3A fuse is required for each fan unit. The product is fully compliant with the following safety standards: CE2004/105//EMC Directives and LVD 2006 195/EC. Switches for fans should be selected and sited in accordance with BS7161:2008. Box Contains 1 x Complete Fan 1 x Instructions 1 x Screws and Fixings
BrandAIRFLOW SPV VENT (CAT 50)
DeliveryNext Day
Dimensions225 x 225 x 141
Fan LocationWall or Ceiling
Sound34.5dB(A)
Performance118 (32)
Integral ShuttersYes
IP RatingIPX4
Maximum Duct Run3m or less
Power30
Room TypeBathroom/Utility
Running ModeIntermittent
Safety ZoneZone 1, 2 and Outside
Spigot Dimension100
Guarantee3 Years
