• No breather tube
• Soft start
• Small multi orientation sensor
• Plug & Play
• Univolt
Up to 19.3kW / 66,000Btu/h
High wall split systems
Ducted units
Floor standing & Chassis units
Perfect for... installing directly inside the unit
Description

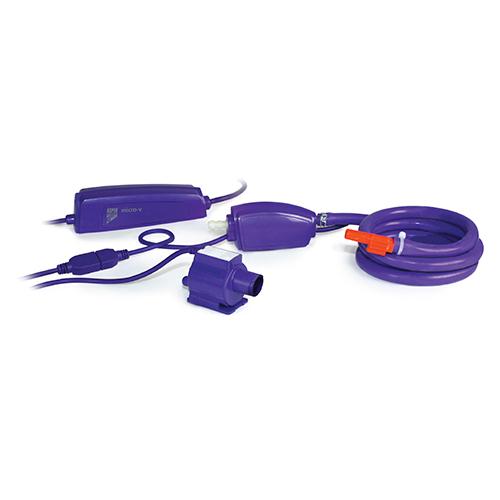

MICRO V I4 FP1200 THE INTELLIGENT CONDENSATE REMOVAL PUMP
The award-winning Micro-v condensate removal pump with no breather tube, fits into the smallest of spaces. On-demand operation and floatless technology delivers silent running and a longer pump life
IN THE BOX:
• Water sensor fitted with 850mm interface cable terminated with a plug (removable sensor bracket attached)
• Adaptive pump fitted with 1m interface cable and 1m x 6mm violet tube (anti siphon device fitted)
• Universal voltage power supply fitted with 200mm plug and play fly lead connected to 1.4m power cable combined power and high water level cores
• AV Pump bracket & sleeve
• 1 amp fuse • Inline filter
• 90° elbow drain connector & fixing kit
• Install manual
| Brand | ASPEN (CAT 80) |
| Dimensions | See data sheet |
| Max Flow | 14.5L/h @ 0 head |
| Max Rec. Head | 10m |
| Max Suction Lift | 2m |
| Tank Capacity | n/a |
| Sound Level @ 1m | 19dB(A) |
| Rated | Continuous |
| Class | II appliance |
| Max Unit Output | 19.3kW / 66,000Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | 6mm ID |
| Inlet/Outlet | n/a |
| IP Rating | IP24 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | Yes |
| Self Priming | Yes |
| Power | 100-250 VAC, 0.45A, 50/60Hz |
| Guarantee | 1 Year |
• No breather tube
• Soft start
• Small multi orientation sensor
• Plug & Play
• Univolt
Up to 19.3kW / 66,000Btu/h
High wall split systems
Ducted units
Floor standing & Chassis units
Perfect for... installing directly inside the unit
