• High power motor
• Superior performance
• Submersible secondary reservoir included
Up to 46kW / 157,000Btu/h
High wall split systems
Ducted units
Floor standing & Chassis units
Perfect for... Large commercial units
Description

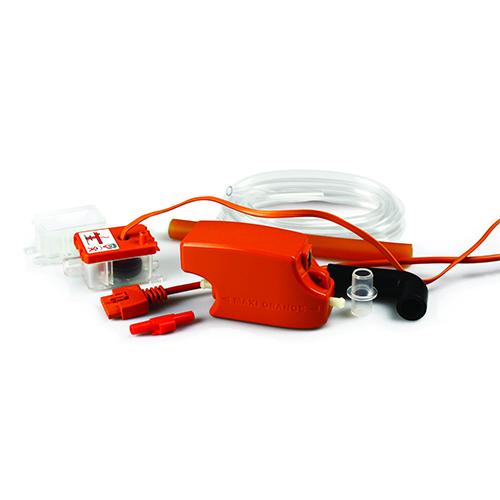

MAXI ORANGE CONDENSATE REMOVAL PUMP
Need more performance? Designed for larger units, the Maxi Orange pump gives you the extra power when you need it.
IN THE BOX:
• Maxi Orange pump
• 1.5m Plug & play power cable
• Reservoir
• Reservoir lid with 1.5m sensor cable
• Submersible reservoir
• Anti siphon device
• Float & filter
• 1.5m Suction tube 6mm ID
• 220mm Orange inlet hose 14mm ID
• 150mm Vinyl breather tube 6mm ID
• Drain connector kit
• Fixing kit
• Install manual
| Brand | ASPEN (CAT 80) |
| Delivery | Next Day |
| Dimensions | 122 x 44 x 66 |
| Max Flow | 35L/h @ 0 head |
| Max Rec. Head | 15m |
| Max Suction Lift | 2m |
| Tank Capacity | n/a |
| Sound Level @ 1m | 35dB(A) |
| Rated | Non continuous |
| Class | II appliance |
| Max Unit Output | 46kW / 157,000Btu/h |
| Max Water Temperature | 40o C / 104o F |
| Discharge Tube | 6mm ID |
| Inlet/Outlet | n/a |
| IP Rating | IP21 |
| Safety Switch | 3.0A Normally closed |
| Thermal Protection | Yes |
| Fully Potted | Yes |
| Self Priming | Yes |
| Power | 230 VAC, 0.11A, 16W 50/60Hz |
| Guarantee | 1 Year |
