• Ultra slim
• High performance
• Plug & play
• Anti siphon device
Up to 16kW / 54,000Btu/h
High wall mini split systems
Ducted units
Floor standing & Chassis units Perfect for... installing directly inside the unit
Description
MINI AQUA CONDENSATE REMOVAL PUMP
The world’s slimmest condensate removal pump is designed to fit where other’s can’t!

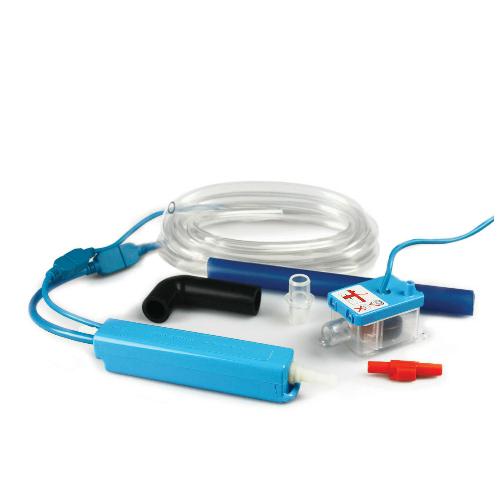

IN THE BOX:
• Mini Aqua pump
• 1.5m Plug & play power cable
• Reservoir (inc. filter, float, lid)
• 150mm Vinyl breather tube 6mm ID
• Anti siphon device
• 1.5m Suction tube 6mm ID
• 220mm Blue inlet hose 14mm ID
• Drain connector kit
• Fixing kit
• Install manual
Brand | ASPEN (CAT 80) |
Dimensions | 183 x 28 x 28 |
Max Flow | 12L/h @ 0 head |
Max Rec. Head | 10m |
Max Suction Lift | 2m |
Tank Capacity | n/a |
Sound Level @ 1m | 21dB(A) |
Rated | Non continuous |
Class | II appliance |
Max Unit Output | 16kW / 54,000Btu/h |
Max Water Temperature | 40o C / 104o F |
Discharge Tube | 6mm ID |
Inlet/Outlet | n/a |
IP Rating | IP24 |
Safety Switch | 3.0A Normally closed |
Thermal Protection | Yes |
Fully Potted | Yes |
Self Priming | Yes |
Power | 230 VAC, 0.1A, 16W, 50/60Hz |
Guarantee | 1 Year |
