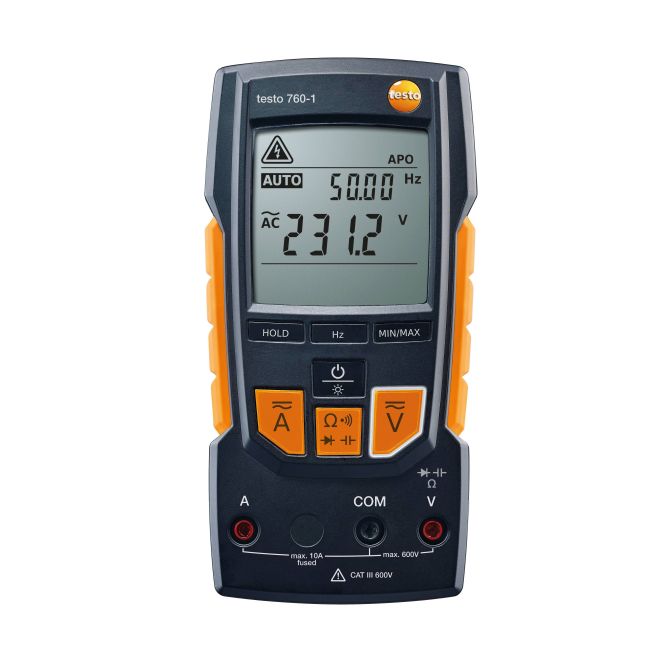

testo 760-1 - Multimeter

• • • • • Easy, reliable operation through automatic measurement parameter detection

        • Prevents incorrect settings

        • Suitable for almost all electrical measuring tasks

        • Clear, illuminated display

        No dial, no risk: The testo 760-1 digital multimeter gives you easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.

  • Details

    Product Description

    Overview

    The testo 760 digital multimeter family comprises three models for all important electrical measuring tasks. Function keys replace the traditional dial on all three instruments, which means easier operation and greater reliability. Incorrect settings are now impossible, because the measurement parameters are detected automatically via the assignment of the measuring sockets and also shown by the illumination of the appropriate function keys. This prevents accidentally blowing the meter’s fuse because of incorrect connections.

    The testo 760-1 model is the standard version for virtually all daily measuring tasks.

    The testo 760-2 is differentiated by a larger current measurement range, the true root mean square measurement - TRMS - and a low-pass filter.

    The testo 760-3 is the model with the highest specification and, in addition to the features of the other two models, it has a voltage range of up to 1,000 V, along with higher measuring ranges for frequency and capacitance.



    Delivery Scope

    testo 760-1 Digital Multimeter, batteries and 1 set of measuring cables




    ---

    Technical Data

    DC voltage
    Measuring range	0.1 to 600 V
    Resolution	max. 0.1 mV
    Accuracy	± (0.8 % of mv + 3 Digit)

    AC voltage
    Measuring range	0.1 mV to 600 V
    Resolution	max. 0.1 mV
    Accuracy	± (1.0 % of mv + 3 Digit)

    DC current
    Measuring range	0.1 mA to 10 A
    Resolution	max. 0.1
    Accuracy	± (1.5 % of mv + 5 Digit)

    AC current
    Measuring range	0.1 mA to 10 A
    Resolution	max. 0.1 mA
    Accuracy	± (1.0 % of mv + 3 Digit)

    Resistance
    Resolution	max. 0.1 Ohm
    Measuring range	0.1 to 40.00 MOhm
    Accuracy	± (1.5 % of mv + 3 Digit)

    Capacitance
    Resolution	max. 0.01 nF
    Measuring range	0.001 nF to 100 μF
    Accuracy	± (1.5 % of mv + 5 Digit)

    Frequency
    Resolution	max. 0.001 Hz
    Measuring range	0.001 Hz to 512.0 kHz
    Accuracy	± (0.1 % of mv + 1 Digit)

    General technical data
    Operating humidity	0 to 80 %RH
    Weight	340 g
    Dimensions	167 x 85 x 45 mm
    Operating temperature	-10 to +50 °C
    Product colour	Black
    Protection class	IP64
    Standards	EN 61326-1; EN 61010-2-033; EN 61140
    Battery type	2 AAA micro batteries
    Display type	LCD (Liquid Crystal Display)
    Display size	2 lines
    Interface	4 measuring jacks
    Storage temperature	-15 to +60 °C
    Overvoltage Category	CAT III 600V; CAT IV 300V
    Authorizations	CSA; CE
    Internal_resistance	11 MOhm (AC / DC)

    Instrument Measurement Functions
    Diode test	yes
    Continuity testing	yes
    Display ligthing	yes
    Hold	yes
    MinMax	yes
    Display (counts)	4,000
    Autom. measurement parameter detection	yes
