- 3 configurable speed options up to 30l/s airflow
- Boost triggered by excess humidity

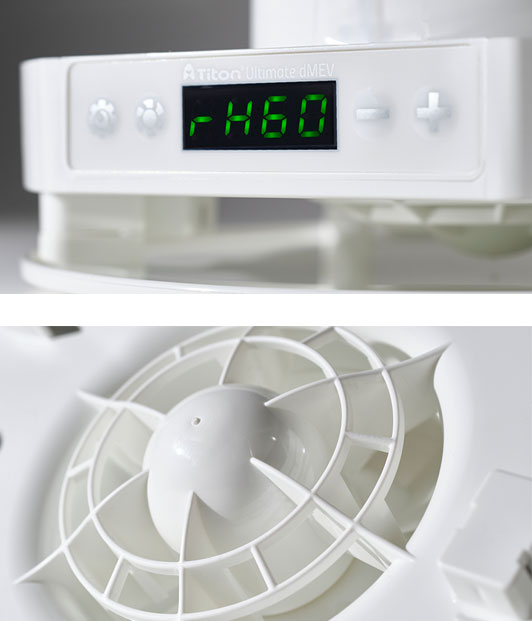

- User friendly LED commissioning and controls
- Low noise - as low as 10 dB(A)
- IPX4
- 18 Month Guarantee (UK only)
Description

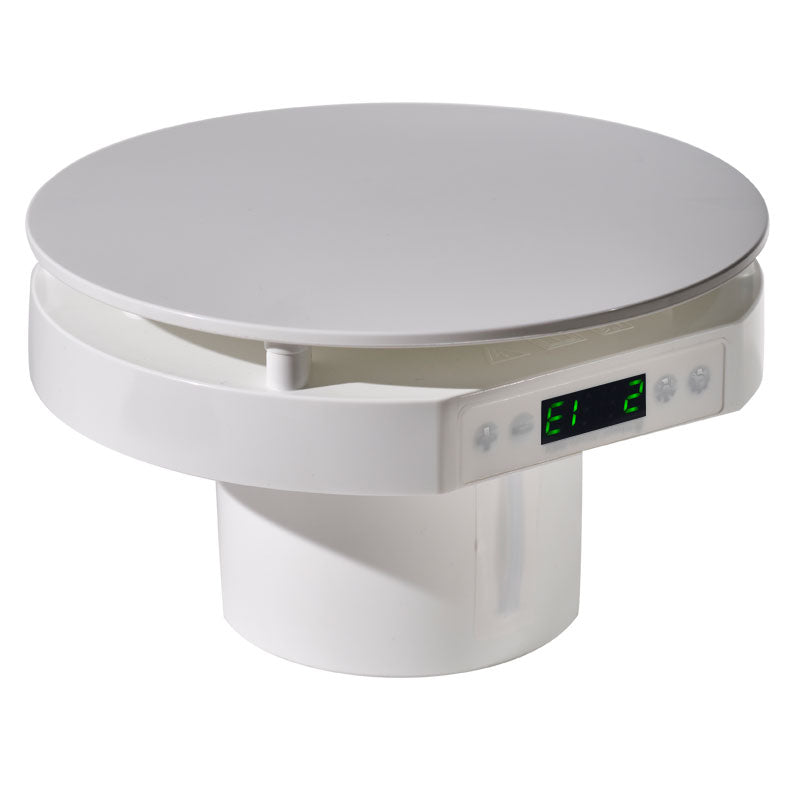

The new high performing Titon Ultimate® dMEV is an ultra quiet low profile fan, which is suitable for new build or refurbishment projects. With its one fan fits all solution, it is ideal for bathrooms, kitchens and utility room applications.
With adjustable continuous and boost speed settings available, the Titon Ultimate® dMEV utilises an efficient DC motor and incorporates a uniquely designed impeller/guide vane combination to produce high flow rates and pressure. If desired, the unit can also now be programmed to run as a conventional intermittent fan.
The Titon Ultimate® dMEV uses a boost overrun and boost delay timer that is adjustable between 0 - 60 minutes and triggered by excess humidity. The unit has constant flow, and optional data logging (model code TP640HD).
To maintain the IPX4 rating when ceiling mounted, a TP646 kit must be used. The TP646 ceiling mount kit is an optional extra and can be selected in related products below
| Brand | TITON SPV CAT 55 |
| Control Option | Humidity |
| Delivery | Next Day |

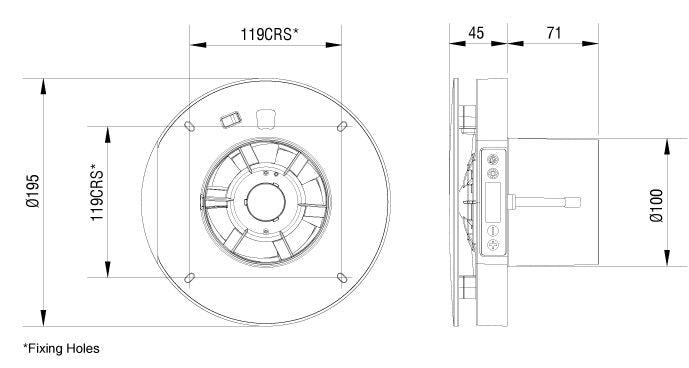

| Dimensions | 195mm max diameter (external) x 116mm deep |

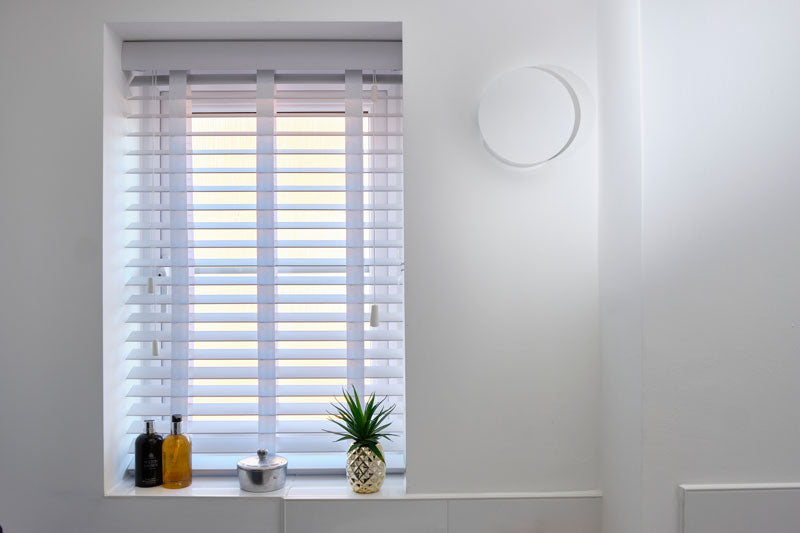

| Fan Location | Wall or Ceiling |
| Sound | 10 dB(A) (@ 3 metres) |
| Performance | 5 - 20 l/s |
| Integral Shutters | No |
| IP Rating | IPX4 |
| Maximum Duct Run | 3m to 9m |
| Power | 1.1W min - 1.5W max |
| Room Type | Bathroom |
| Running Mode | Constant |
| Safety Zone | Zone 1, 2 and Outside |
| Spigot Dimension | 100mm |
| Guarantee | 18 Months (UK Only) |
