- 17mm stylish ultra low profile grille
- Downstream airflow guide vanes for improved pressure development
- Ball bearing motors
- Low power consumption
- Suitable for wall and panel mounting only
- Can be installed at any angle
- Designed for vertical or horizontal application
Description

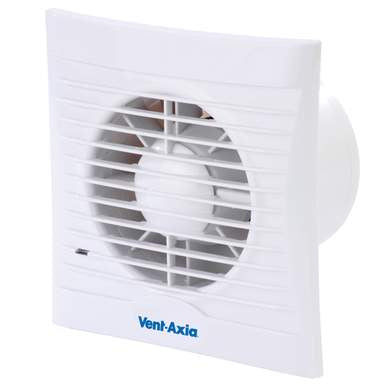

- The Vent Axia Silhouette 100 is a slimline, single speed 4 inch extractor fan with an integral adjustable overrun timer up to 30 minutes. It boasts an airflow of 95m/3hr and with a chamfered profile of only 12mm, the silhouette blends in with the wall surface to provide an unobtrusive installation.
- 17mm stylish ultra low profile grille
- Downstream airflow guide vanes for improved pressure development
- Ball bearing motors
- Low power consumption
- Suitable for wall and panel mounting only
- Can be installed at any angle
- Designed for vertical or horizontal application
- 2 Year Guarantee
| Brand | Vent Axia |
| Control Option | Humidistat & Timer |
| Delivery | Next Day |
| Dimensions | 177mm Diameter x 81mm Deep |
| Fan Location | Wall or Ceiling |
| Sound | 17 dB(A) @ 3m |
| Performance | 10 - 30 l/s |
| Integral Shutters | No |
| IP Rating | IPX4 |
| Maximum Duct Run | 3m or less |
| Power | 4 Watts Max |
| Room Type | Kitchen or Bathroom |
| Running Mode | Continuous or Intermittent |
| Safety Zone | Zone 1, 2 and Outside |
| Spigot Dimension | 99mm Diameter |
| Guarantee | 2 Years |
