Description
Description

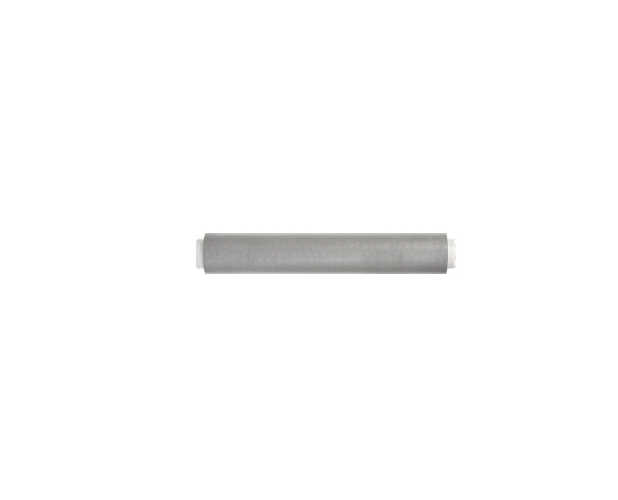

Insulated duct:
Insulated duct available in 1 m or 2 m lengths. Each
length comes complete with a single duct to duct
connector (GD933SSCI) to fit into the next straight
length. Suitable for use with GDA17I to reduce to
GD913 ø 150 mm PVC ductwork.
The Zehnder ø 160 mm self-seal insulated ducting is perfect for meeting Building Regulations for insulation whilst
minimising air leakage. The lightweight and robust ductwork along with the self-seal connection mean this can be
installed much faster than conventional rockwool insulation.
The PUSH - CLICK - LOCK connection eliminate the need for tape, sealant and screws and also exceeds the
requirements set out in DW/143 Class A Leakage Test and DW/154 ductwork standards and has also been
independently tested by the BRE.
The ductwork is compatible with our standard ø 150 mm PVC ductwork when used with our reducer.
■ Easy and quick to install
■ Airtight
■ Compliant with Building Regulations
■ Independently tested by the BRE
■ Simple PUSH - CLICK - LOCK connection
■ Lightweight and easy to handle
■ No sealant or tape required
■ Wide range of size options
■ Suitable for use with standard PVC ductwork
Technical Specification
Outside diameter 200 mm
Inside diameter 160 mm
Length 1000 mm / 2000 mm
Weight 0.422 kg / 0.844 kg
| Brand | Zehnder |
